Switch Operation:
Off-On (Momentary)
Operating Force:
2.65 N
Actuator Length:
3.3mm
Illuminated:
Yes
Mounting Type:
PCB
Voltage Rating:
24V dc
Contact Current Rating:
125 mA
Minimum Operating Temperature:
-25°C
Contact Configuration:
SPST
Height:
14.7mm
Width:
12.3mm
Length:
12.3mm
Actuator Type:
Extended
Operating Temperature Range:
-25 → +70°C
Contact Material:
Brass (Stationary), Stainless Steel (Movable)
Maximum Operating Temperature:
+70°C
Terminal Type:
PC Pin
Dimensions:
10 x 10 x 14.7mm
Operating Force:
265gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
title:

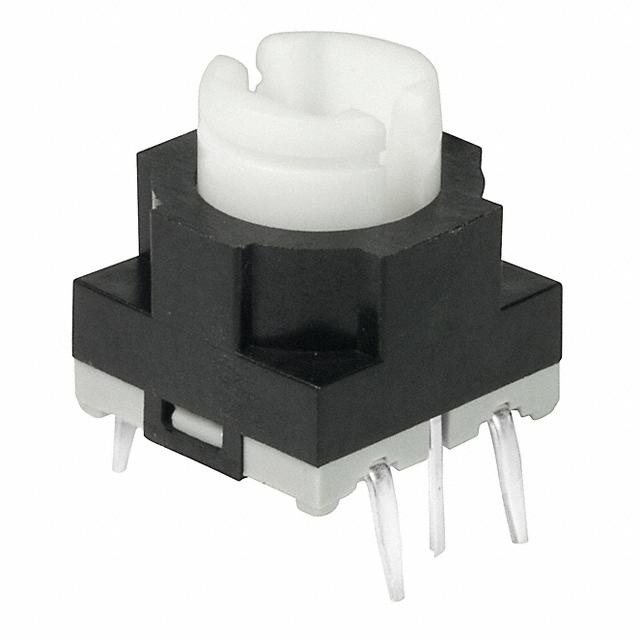

JB15HBPE
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Yellow
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.125A @ 24VDC
standardLeadTime:
13 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Packaging:
Tray
Switch Travel:
0.30mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
2 VDC
Actuator Material:
-
Base Product Number:
-
ECCN:
EAR99
