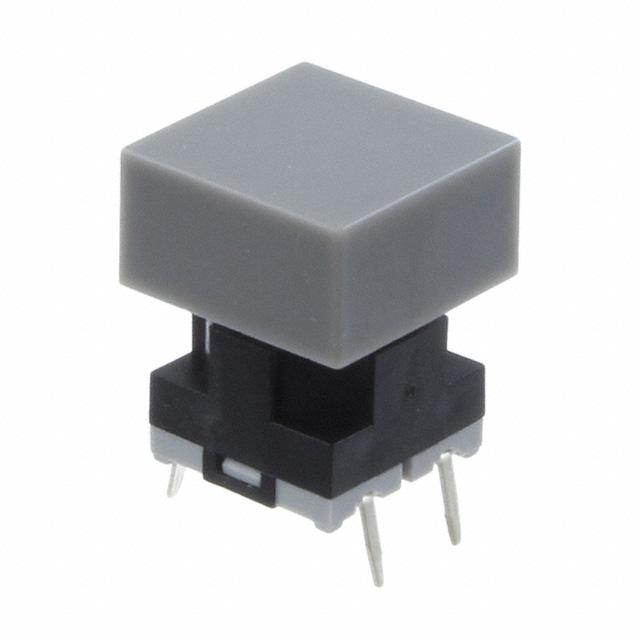

NKK Switches JB15HAP-2H

JB15HAP-2H NKK Switches
NKK Switches

Product Information

Operating Force:
265gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
14.70mm
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
title:
JB15HAP-2H
REACH Status:
REACH Unaffected
edacadModel:
JB15HAP-2H Models
edacadModelUrl:
/en/models/1242081
Illumination Type, Color:
-
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.125A @ 24VDC
standardLeadTime:
18 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Packaging:
Tray
Switch Travel:
0.30mm
Actuator Type:
Square Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polybutylene Terephthalate (PBT), Glass Filled
Base Product Number:
JB15HAP
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JB15HAP-2H. It has a 265gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 14.70mm actuator vertical height off PCB. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 10.00mm x 10.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.125a @ 24vdc. It has a long 18 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jb, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product has a switching travel of 0.30mm. The product carries square button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polybutylene terephthalate (pbt), glass filled material. Moreover, it corresponds to jb15hap, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
JB Series Low Profile Tactiles(Datasheets)
pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
