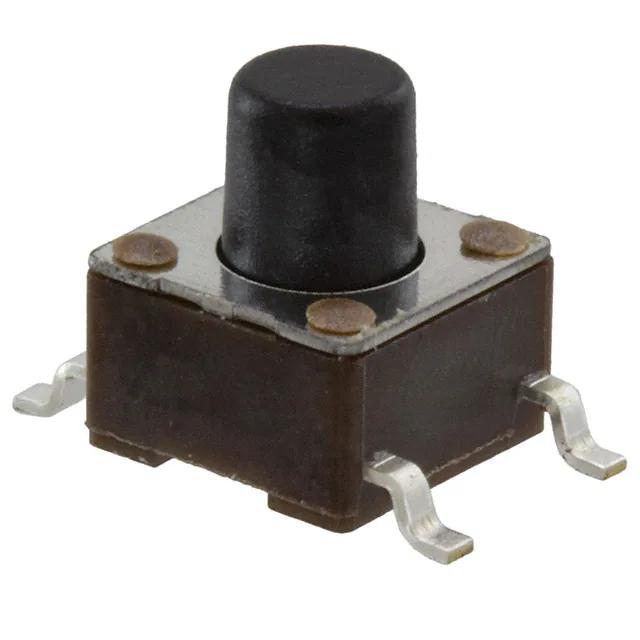

TE Connectivity ALCOSWITCH Switches FSM6JSMATR

FSM6JSMATR TE Connectivity ALCOSWITCH Switches
FSM6JSMATR
TE Connectivity ALCOSWITCH Switches

Product Information

Manufacturer Standard Lead Time:
13 Weeks
Detailed Description:
Tactile Switch SPST-NO Top Actuated Surface Mount
Operating Force:
160gf
Termination Style:
Gull Wing
Operating Temperature:
-35°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
Base Part Number:
FSM6JSMA
Actuator Height off PCB, Vertical:
7.00mm
Customer Reference:
Outline:
6.00mm x 6.00mm
Switch Function:
Off-Mom
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
Mounting Type:
Surface Mount
Series:
FSMJSMA
Packaging:
Cut Tape (CT)
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Manufacturer:
TE Connectivity ALCOSWITCH Switches
Actuator Material:
Polyphenylene Sulfide (PPS)
Checking for live stock

This is manufactured by TE Connectivity ALCOSWITCH Switches. The manufacturer part number is FSM6JSMATR. It has typical 13 weeks of manufacturer standard lead time. It features tactile switch spst-no top actuated surface mount. It has a 160gf of operating force. Moreover, it has gull wing terminal style. The product has -35°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. Base Part Number: fsm6jsma. Features 7.00mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is designed as a off-mom switching function. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. The product is available in surface mount configuration. The product fsmjsma, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The te connectivity alcoswitch switches's product offers user-desired applications. The actuator is designed from sturdy polyphenylene sulfide (pps) material.

pdf icon
FSM JSM Tactile Switches Cover 20/Feb/2015(PCN Design/Specification)
pdf icon
2-1437565-7 Drawing Update 05/May/2015(PCN Design/Specification)
