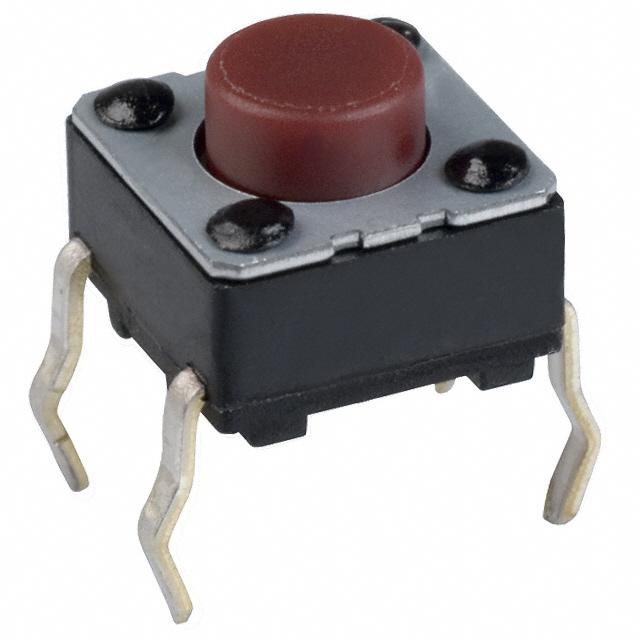

Panasonic Electronic Components EVQ-PAD05R

EVQ-PAD05R Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
130gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
Actuator Height off PCB, Vertical:
5.00mm
edacadModel:
EVQ-PAD05R Models
edacadModelUrl:
/en/models/284831
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Package:
Bulk
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
EVQPA
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-PA
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PAD05R. It has a 130gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. Features 5.00mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is shipped in bulk package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. The product is available in through hole configuration. The product evqpa, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pa, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Various Light Touch Switchs 12/Jun/2018(PCN Obsolescence/ EOL)
pdf icon
EVQPA, EVQPB Series Datasheet(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVQ-PAD05R on website for other similar products.
We accept all major payment methods for all products including ET12176850. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVQ-PAD05R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVQ-PAD05R. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVQ-PAD05R.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12176850 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12176850.
Yes. We ship EVQ-PAD05R Internationally to many countries around the world.
