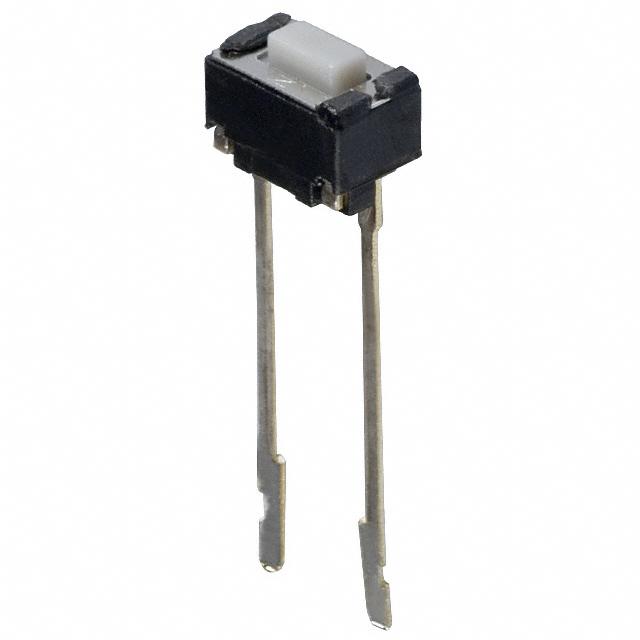

Panasonic Electronic Components EVQ-PJG05Q

EVQ-PJG05Q Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
100gf
HTSUS:
8536.50.9031
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
5.00mm
Operating Temperature:
-30°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
50,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
6.00mm x 3.50mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
-
Features:
Tactile Feedback
Mounting Type:
Through Hole
Series:
EVQPJ
Packaging:
Tape & Box (TB)
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-PJ
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PJG05Q. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. Moreover, it has pc pin terminal style. Features 5.00mm actuator vertical height off PCB. The product has -30°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 50,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.00mm x 3.50mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The splendid features of the product include tactile feedback. The product is available in through hole configuration. The product evqpj, is a highly preferred choice for users. In addition, tape & box (tb) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pj, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EVQPJ Series 15/Sep/2014(PCN Obsolescence/ EOL)
pdf icon
EVEG,H,K,L Series 08/Aug/2014(PCN Obsolescence/ EOL)
pdf icon
EVQPJ Type(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVQ-PJG05Q on website for other similar products.
We accept all major payment methods for all products including ET12143335. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVQ-PJG05Q directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVQ-PJG05Q. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVQ-PJG05Q.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12143335 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12143335.
Yes. We ship EVQ-PJG05Q Internationally to many countries around the world.
