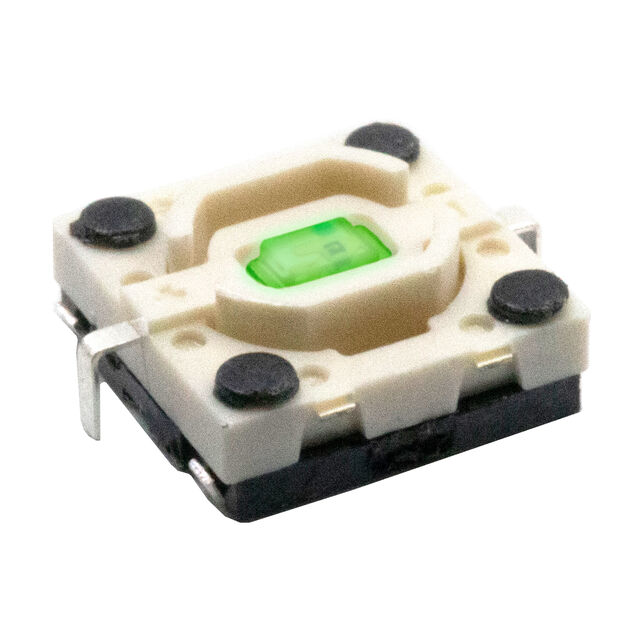

E-Switch TL3215AF160GQ

TL3215AF160GQ E-Switch
TL3215AF160GQ
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
SMD (SMT) Tab
Actuator Height off PCB, Vertical:
2.00mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
title:
TL3215AF160GQ
REACH Status:
REACH Unaffected
edacadModel:
TL3215AF160GQ Models
edacadModelUrl:
/en/models/5181951
Illumination Type, Color:
LED, Green
Outline:
4.90mm x 4.90mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
2 (1 Year)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3215
Packaging:
Tape & Reel (TR)
Switch Travel:
0.25mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.05 VDC
Actuator Material:
-
Base Product Number:
TL3215
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3215AF160GQ. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has smd (smt) tab terminal style. Features 2.00mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. It is supplied with led, green illumination. The given outline of the product is 4.90mm x 4.90mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 2 (1 year). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. The product tl3215, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.05 vdc. Moreover, it corresponds to tl3215, a base product number of the product. The product is designated with the ear99 code number.
