TE Connectivity ALCOSWITCH Switches 2-1825910-7

2-1825910-7 TE Connectivity ALCOSWITCH Switches
2-1825910-7
TE Connectivity ALCOSWITCH Switches

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin

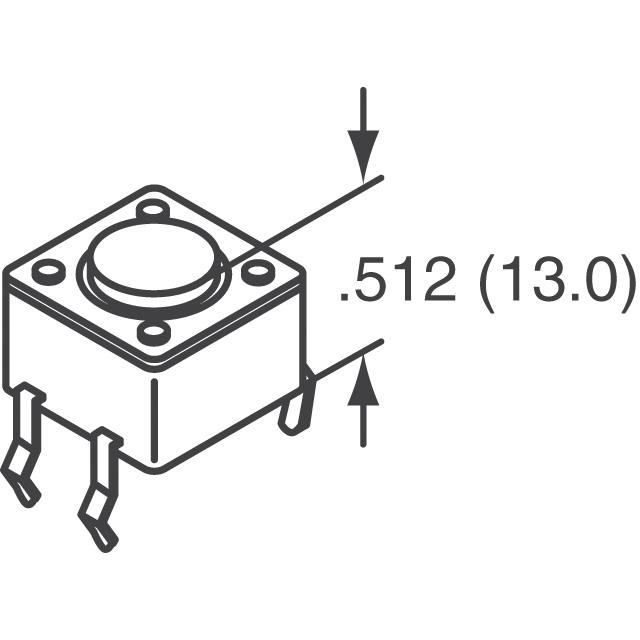

Actuator Height off PCB, Vertical:
13.00mm
Operating Temperature:
-35°C ~ 85°C
Actuator Orientation:
Top Actuated
REACH Status:
REACH Unaffected
edacadModel:
2-1825910-7 Models
edacadModelUrl:
/en/models/1632528
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
16 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
FSMJ
Packaging:
Bulk
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
1825910
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity ALCOSWITCH Switches. The manufacturer part number is 2-1825910-7. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 13.00mm actuator vertical height off PCB. The product has -35°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. The given outline of the product is 6.00mm x 6.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 16 weeks standard lead time. The product is available in through hole configuration. The product fsmj, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 1825910, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Clarification/Correction 14/NOV/2022(PCN Design/Specification)
pdf icon
y-1825910-y Drawing Rev 21/Feb/2014(PCN Design/Specification)
pdf icon
2-1825910-7(Datasheets)
