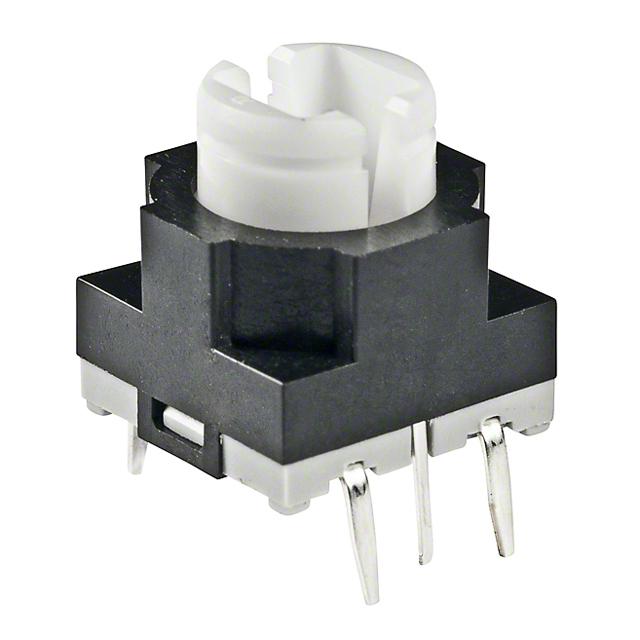

NKK Switches JB15HBPC

JB15HBPC NKK Switches
JB15HBPC
NKK Switches

Product Information

Switch Operation:
Off-On (Momentary)
Operating Force:
2.65 N
Actuator Length:
3.3mm
Illuminated:
Yes
Mounting Type:
PCB
Voltage Rating:
24V dc
Contact Current Rating:
125 mA
Minimum Operating Temperature:
-25°C
Contact Configuration:
Single Pole Single Throw (SPST)
Height:
14.7mm
Width:
12.3mm
Length:
12.3mm
Actuator Type:
Extended
Operating Temperature Range:
-25 → +70°C
Contact Material:
Brass (Stationary), Stainless Steel (Movable)
Maximum Operating Temperature:
+70°C
Terminal Type:
PC Pin
Dimensions:
10 x 10 x 14.7mm
Operating Force:
265gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Red
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.125A @ 24VDC
standardLeadTime:
30 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
JB
Packaging:
Tray
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
1.8 VDC
Base Product Number:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is JB15HBPC. It provides off-on (momentary) switch operation. It has a 2.65 n of operating force. The actuator is a 3.3mm long. Illumination Option yes. The product is available in pcb configuration. Moreover, the product has a nominal 24v dc voltage rating. The rated contact current is 125 ma. Whereas, the minimum operating temperature of the product is -25°c. The contact is equipped with single pole single throw (spst) configuration. In addition, the height is 14.7mm. Furthermore, the product is 12.3mm wide. Its accurate length is 12.3mm. The product carries extended actuator. The product has -25 → +70°c of operating temperature range. The product is made from sturdy brass (stationary), stainless steel (movable) materials. It has a maximum operating temperature of +70°c. The terminal is a pc pin type. The given dimensions of the product include 10 x 10 x 14.7mm. It has a 265gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. It is supplied with led, red illumination. The given outline of the product is 10.00mm x 10.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.125a @ 24vdc. It has a long 30 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include process sealed. The product is available in through hole configuration. The product jb, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 1.8 vdc. The product is designated with the ear99 code number.
