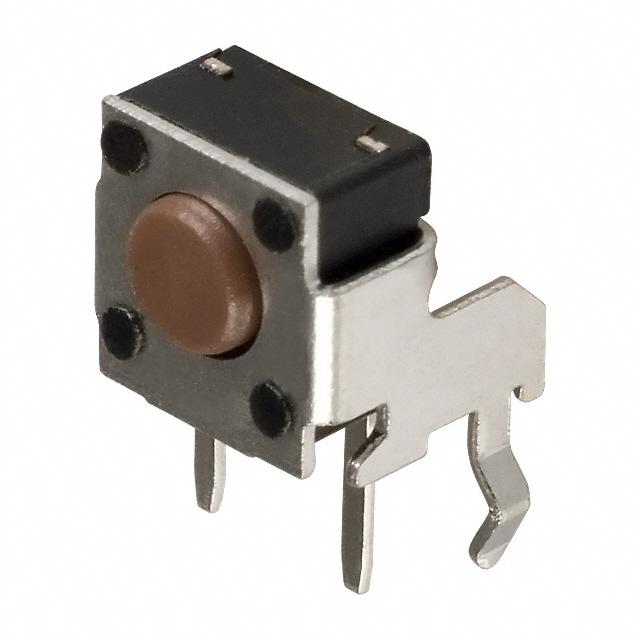

E-Switch TL1105WF100Q

TL1105WF100Q E-Switch
TL1105WF100Q
E-Switch

Product Information

Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL1105WF100Q Models
edacadModelUrl:
/en/models/378965
Illumination Type, Color:
-
Outline:
7.10mm x 6.55mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
3.15mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
TL1105
Packaging:
Bulk
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
TL1105
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL1105WF100Q. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 7.10mm x 6.55mm. It is designed as a off-mom switching function. The right angle actuator length is 3.15mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 15 weeks standard lead time. The product is available in through hole, right angle configuration. The product tl1105, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to tl1105, a base product number of the product. The product is designated with the ear99 code number.
