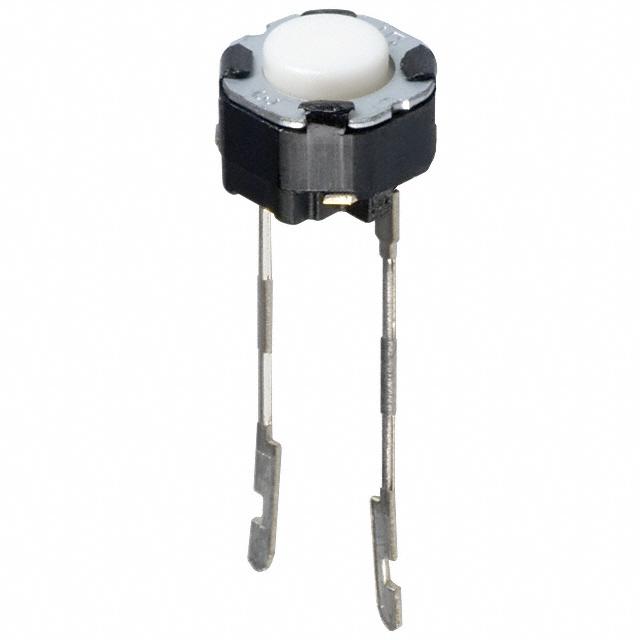

Panasonic Electronic Components EVQ-11G04M

EVQ-11G04M Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
130gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
Actuator Height off PCB, Vertical:
4.30mm
edacadModel:
EVQ-11G04M Models
edacadModelUrl:
/en/models/259527
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Package:
Cut Tape (CT)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
EVQ11
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-11
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-11G04M. It has a 130gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. Features 4.30mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is shipped in cut tape (ct) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. The product is available in through hole configuration. The product evq11, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-11, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Various Light Touch Switchs 12/Jun/2018(PCN Obsolescence/ EOL)
pdf icon
EVQ-11 Series Datasheet(Datasheets)
pdf icon
Light Touch Switches, Pkg Spec(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVQ-11G04M on website for other similar products.
We accept all major payment methods for all products including ET11454934. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVQ-11G04M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVQ-11G04M. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVQ-11G04M.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11454934 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11454934.
Yes. We ship EVQ-11G04M Internationally to many countries around the world.
