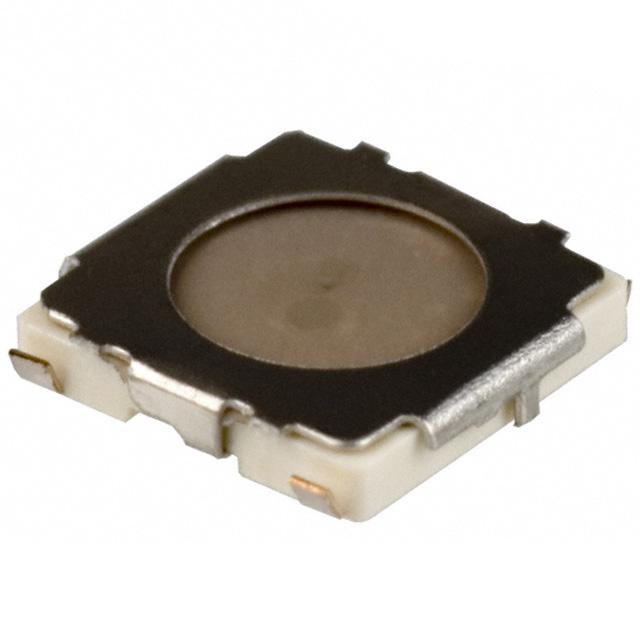

Panasonic Electronic Components EVQ-PLFA08

EVQ-PLFA08 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
163gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
Actuator Height off PCB, Vertical:
0.80mm
Illumination Type, Color:
-
Outline:
4.90mm x 4.90mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
standardLeadTime:
15 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
EVQPL
Switch Travel:
0.25mm
Actuator Type:
Without
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-PL
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PLFA08. It has a 163gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has j lead terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. Features 0.80mm actuator vertical height off PCB. The given outline of the product is 4.90mm x 4.90mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. It has a long 15 weeks standard lead time. The product is available in surface mount configuration. The product evqpl, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries without actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pl, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EVQPL/EVQ3PL/EVQ5PL/EVQPT(Datasheets)
pdf icon
Multiple Devices Reel Change 10/May/2017(PCN Packaging)
