Operating Force:
1.6 N
Actuator Colour:
Black
Dimensions:
6.20 x 6.20 x 4.40mm
Mounting Type:
Surface Mount
Voltage Rating:
28V dc
Contact Current Rating:
100 mA
Minimum Operating Temperature:
-20°C
Contact Configuration:
SPST
Height:
4.4mm
Width:
6.2mm
Length:
6.2mm
Actuator Type:
Flat Button
Actuator Length:
0.8mm
Operating Temperature Range:
-20 → +70°C
Switch Operation:
Off-On (Momentary)
Maximum Operating Temperature:
+70°C
Terminal Type:
Gull Wing
Contact Material:
Brass (Stationary), Stainless Steel (Movable)
Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
4.40mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
title:

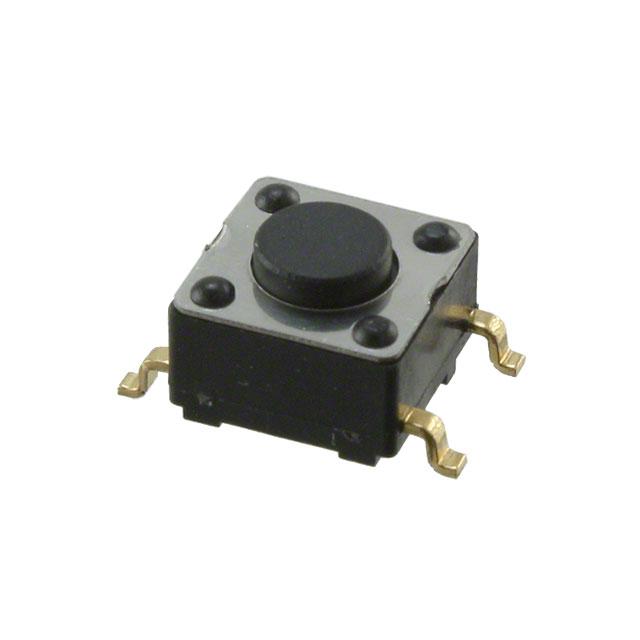

HP0315AFKP4-S
REACH Status:
REACH Unaffected
edacadModel:
HP0315AFKP4-S Models
edacadModelUrl:
/en/models/1242040
Illumination Type, Color:
-
Outline:
6.20mm x 6.20mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.4VA @ 28VAC/DC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
Sealed - Flux Protection
Mounting Type:
Surface Mount
Series:
HP03
Packaging:
Tube
Switch Travel:
0.20mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Base Product Number:
HP0315A
ECCN:
EAR99
