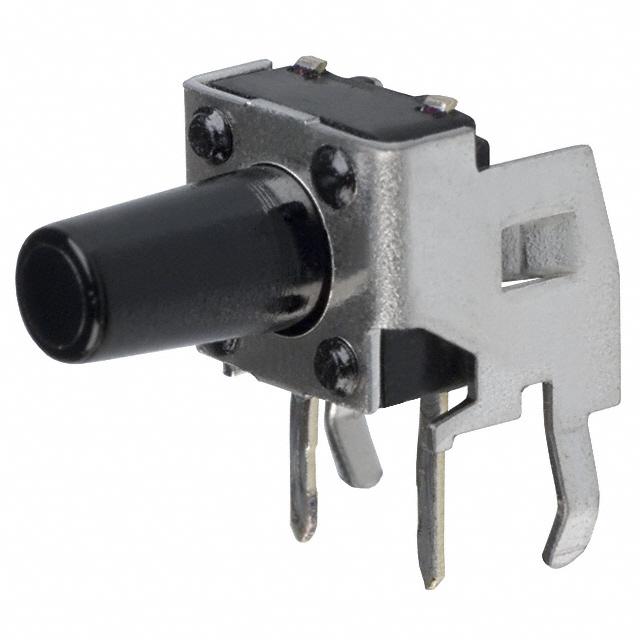

Panasonic Electronic Components EVQ-PF008K

EVQ-PF008K Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
PC Pin
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
Actuator Height off PCB, Vertical:
-
edacadModel:
EVQ-PF008K Models
edacadModelUrl:
/en/models/286365
Illumination Type, Color:
-
Outline:
7.50mm x 7.10mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
8.35mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
EVQPF
Packaging:
Bulk
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-PF
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PF008K. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has pc pin terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. The given outline of the product is 7.50mm x 7.10mm. It is designed as a off-mom switching function. The right angle actuator length is 8.35mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. The product is available in through hole, right angle configuration. The product evqpf, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pf, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Various Light Touch Switchs 12/Jun/2018(PCN Obsolescence/ EOL)
pdf icon
EVQ-PF Series(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVQ-PF008K on website for other similar products.
We accept all major payment methods for all products including ET11059680. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVQ-PF008K directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVQ-PF008K. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVQ-PF008K.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11059680 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11059680.
Yes. We ship EVQ-PF008K Internationally to many countries around the world.
