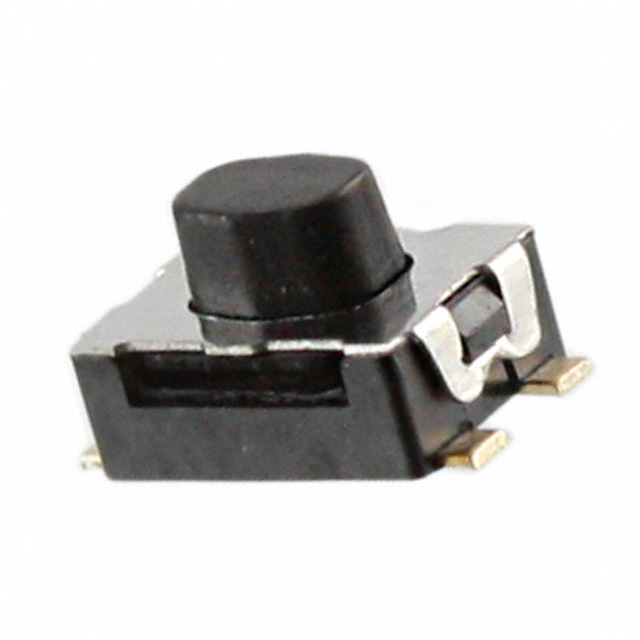

C&K KMR441NG ULC LFS

KMR441NG-ULC-LFS C&K KMR441NG ULC LFS
KMR441NG ULC LFS
C&K

Product Information

Switch Operation:
Momentary
Operating Force:
4 N, 400 gf
Actuator Length:
2.5mm
Illuminated:
No
Mounting Type:
Surface Mount
IP Rating:
IP40
Contact Current Rating:
10 mA
Minimum Operating Temperature:
-40°C
Voltage Rating:
32V dc
Contact Configuration:
Single Pole Single Throw (SPST)
Width:
2.2mm
Length:
4.2mm
Actuator Type:
Top
Operating Temperature Range:
-40 → +85°C
Contact Material:
Silver
Maximum Operating Temperature:
+85°C
Terminal Type:
SMT
Dimensions:
4.2 x 2.2mm
Operating Force:
400gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
2.50mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
4.60mm x 2.80mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 32VDC
standardLeadTime:
8 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
KMR4
Packaging:
Tape & Reel (TR)
Switch Travel:
0.35mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
KMR441
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by C&K. The manufacturer part number is KMR441NG ULC LFS. It provides momentary switch operation. It has a 4 n, 400 gf of operating force. The actuator is a 2.5mm long. Illumination Option no. The product is available in surface mount configuration. It is IP rated with ip40. The rated contact current is 10 ma. Whereas, the minimum operating temperature of the product is -40°c. Moreover, the product has a nominal 32v dc voltage rating. The contact is equipped with single pole single throw (spst) configuration. Furthermore, the product is 2.2mm wide. Its accurate length is 4.2mm. The product carries top actuator. The product has -40 → +85°c of operating temperature range. The product is made from sturdy silver materials. It has a maximum operating temperature of +85°c. The terminal is a smt type. The given dimensions of the product include 4.2 x 2.2mm. It has a 400gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 2.50mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 4.60mm x 2.80mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 32vdc. It has a long 8 weeks standard lead time. The product kmr4, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.35mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to kmr441, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
C&K RoHS/REACH(Environmental Information)
pdf icon
KMR Adhesive Surface/Housing Rev.B 23/Apr/2014(PCN Design/Specification)
pdf icon
KMR Series 05/Nov/2014(PCN Design/Specification)
pdf icon
KMR4 Series Micro Mini Top Acuated Datasheet(Datasheets)
