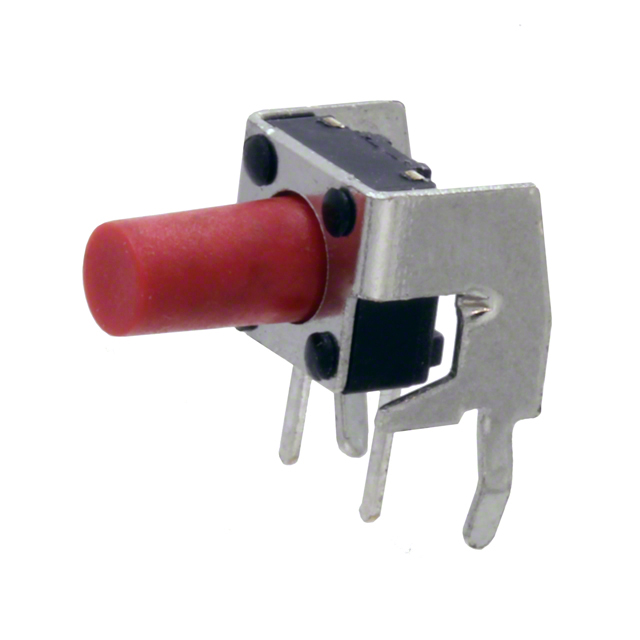

C&K PTS645VK83-2 LFS

PTS645VK83-2-LFS C&K PTS645VK83-2 LFS
PTS645VK83-2 LFS
PTS645VK83-2 LFS
C&K

Product Information

Operating Force:
2.6 N
Actuator Colour:
Red
Dimensions:
7.5 x 6.2mm
Mounting Type:
Through Hole
IP Rating:
IP40
Contact Current Rating:
50 mA
Minimum Operating Temperature:
-20°C
Voltage Rating:
12V dc
Contact Configuration:
SPST
Width:
6.2mm
Length:
7.5mm
Actuator Type:
Button
Actuator Length:
3.5 (Dia.)mm
Operating Temperature Range:
-20 → +60°C
Switch Operation:
Momentary
Maximum Operating Temperature:
+60°C
Terminal Type:
PC Pin
Contact Material:
Silver Plated
Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
title:
PTS645VK83-2 LFS
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
7.50mm x 7.10mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
8.35mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
8 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
PTS645
Packaging:
Bulk
Switch Travel:
-
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA66), Nylon 6/6
Base Product Number:
PTS645
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by C&K. The manufacturer part number is PTS645VK83-2 LFS. It has a 2.6 n of operating force. The actuator has an adorable red colour. The given dimensions of the product include 7.5 x 6.2mm. The product is available in through hole configuration. It is IP rated with ip40. The rated contact current is 50 ma. Whereas, the minimum operating temperature of the product is -20°c. Moreover, the product has a nominal 12v dc voltage rating. The contact is equipped with spst configuration. Furthermore, the product is 6.2mm wide. Its accurate length is 7.5mm. The product carries button actuator. The actuator is a 3.5 (dia.)mm long. The product has -20 → +60°c of operating temperature range. It provides momentary switch operation. It has a maximum operating temperature of +60°c. The terminal is a pc pin type. The product is made from sturdy silver plated materials. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 7.50mm x 7.10mm. It is designed as a off-mom switching function. The right angle actuator length is 8.35mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 8 weeks standard lead time. The product is available in through hole, right angle configuration. The product pts645, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa66), nylon 6/6 material. Moreover, it corresponds to pts645, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
C&K Tactile Switches Technical data sheet(Technical Reference)
pdf icon
PTS645 Series Datasheet(Datasheets)
pdf icon
C&K RoHS/REACH(Environmental Information)
