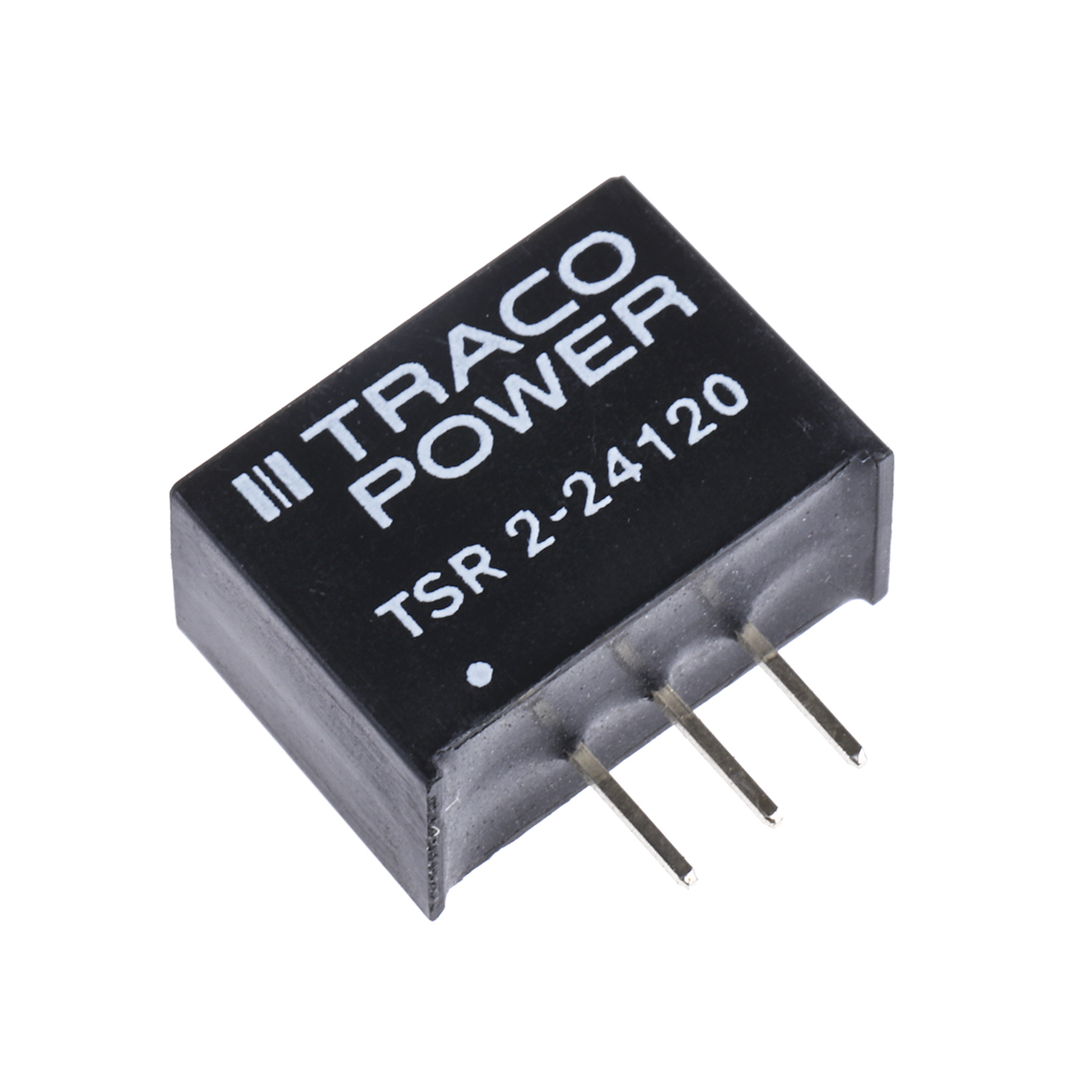

TRACOPOWER Switching Regulator, 15 → 36V dc Input, 12V dc Output, 2A

TSR-2-24120 TRACOPOWER Switching Regulator, 15 → 36V dc Input, 12V dc Output, 2A
TRACOPOWER

Product Information

Maximum Temperature:
+85°C
Minimum Temperature:
-40°C
Width:
7.5mm
MTBF:
13520000h
Protection Features:
Over Temperature Protection, Overload Protection, Short Circuit Protection
Maximum Input Current:
1mA
Load Regulation:
Maximum of 1%
Standards Met:
IEC/EN 60950-1, MIL-STD-810F, UL 60950-1, UL 94 V-0
Efficiency:
95%
Input Voltage:
15 → 36V dc
Switching Frequency Range:
410kHz
Number of Outputs:
1
Line Regulation:
Maximum of 0.5%
Mounting Type:
Through Hole
Package:
SIP
Rated Output Power:
2W
Ripple And Noise:
75mV Pk-Pk
Length:
14mm
Power Signal Conversion Type:
DC-DC
Weight:
2.6g
Output Current:
2A
Series:
TSR 2
Depth:
10.1mm
Output Voltage:
12V dc
RoHs Compliant
Checking for live stock

This is Switching Regulator 15 → 36V dc Input 12V dc Output 2A manufactured by TRACOPOWER. The manufacturer part number is TSR 2-24120. The product has +85°c maximum temperature. While its minimum temperature is -40°c. Furthermore, the product is 7.5mm wide. The MTBF values include 13520000h. It provides robust protection features, such as over temperature protection, overload protection, short circuit protection. While its maximum input current includes 1ma. Load Regulation - maximum of 1%. The product complies with all safety standards, such as iec/en 60950-1, mil-std-810f, ul 60950-1, ul 94 v-0. It is a highly efficient product with an 95% of high efficiency. Its input voltage is 15 → 36v dc. Its switching frequency range is about 410khz . Additionally, the product is supplied with 1 outputs. Has a line regulation of maximum of 0.5%. The product is available in through hole configuration. It is shipped in sip package . It has about 2w rated output power . Carries 75mv pk-pk ripple and noise. Its accurate length is 14mm. In addition, it has dc-dc type power signal conversion . The typical product's weight is 2.6g. It carries 2a output current. The product tsr 2, is a highly preferred choice for users. The product comes in 10.1mm depth. Features a 12v dc output voltage.
