Name: LL4154-GS08, Vishay
Brand: Vishay
SKU: ET16722592
Price: 0.021 GBP
Availability: PreOrder

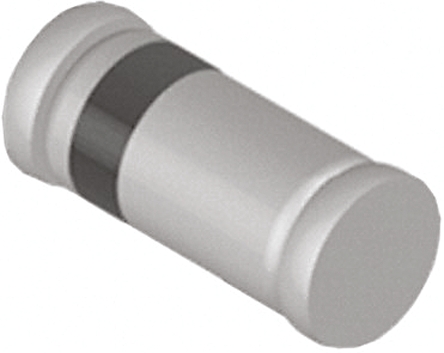

LL4154-GS08 Vishay Small Signal Diode, 300mA 25V, 2-Pin SOD-80

(0)

Product Information

Maximum Diode Capacitance:

4pF

Diameter:

1.6mm

Dimensions:

1.6 (Dia.) x 3.7mm

Mounting Type:

Surface Mount

Maximum Forward Current:

300mA

Maximum Forward Voltage Drop:

Diode Technology:

Silicon Junction

Length:

2.7mm

Package Type:

SOD-80

Number of Elements per Chip:

Maximum Reverse Voltage:

25V

Maximum Operating Temperature:

+175 °C

Checking for live stock

This is Small Signal Diode 300mA 25V 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is LL4154-GS08. It has a maximum 4pf diode capacitance . Its diameter is 1.6mm. The given dimensions of the product include 1.6 (dia.) x 3.7mm. The product is available in surface mount configuration. Moreover, the product has a maximum 300ma forward current . It features 1v of maximum forward voltage drop. The product utilizes silicon junction diode technology. Its accurate length is 2.7mm. The package is a sort of sod-80. It consists of 1 elements per chip. Moreover, the product has a maximum 25v reverse voltage . It has a maximum operating temperature of +175 °c. The diode features a single configuration. It contains 2 pins.

LL4154, Small Signal Fast Switching Diode(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)

Application Note- Trim and Form Process Reccomendation(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
