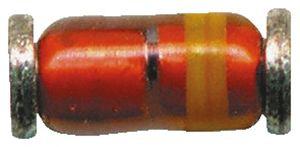

Vishay EGL34D-E3/98 SMT Diode, 200V 500mA, 2-Pin DO-213AA

Enrgtech Part No: ET16722365
|
Manufacturer Part No:
EGL34D-E3/98
|
Manufacturer: Vishay

EGL34D-E3-98 Vishay EGL34D-E3/98 SMT Diode, 200V 500mA, 2-Pin DO-213AA

Product Information

Diameter:

1.676mm

Dimensions:

1.676 (Dia.) x 3.683mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

+175 °C

Maximum Forward Voltage Drop:

1.25V

Diode Technology:

Silicon Junction

Length:

3.68mm

Package Type:

DO-213AA

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Diode Configuration:

Single

Pin Count:

Checking for live stock

This is SMT Diode 200V 500mA 2-Pin DO-213AA manufactured by Vishay. The manufacturer part number is EGL34D-E3/98. Its diameter is 1.676mm. The given dimensions of the product include 1.676 (dia.) x 3.683mm. The product is available in surface mount configuration. It has a maximum operating temperature of +175 °c. It features 1.25v of maximum forward voltage drop. The product utilizes silicon junction diode technology. Its accurate length is 3.68mm. The package is a sort of do-213aa. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The diode features a single configuration. It contains 2 pins.

BYM07-xxx, EGL34x, Surface Mount Glass Passivated Ultrafast Rectifier(Technical Reference)

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)

Application Note- Trim and Form Process Reccomendation(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)
