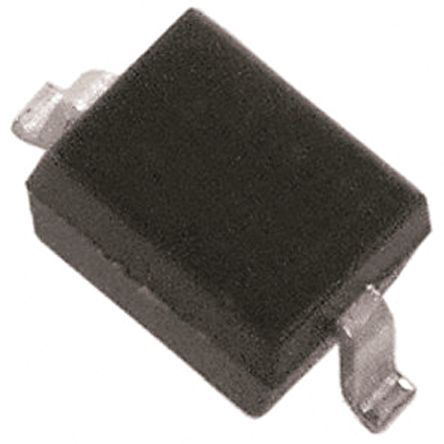

Vishay BAS16WS-E3-18 Switching Diode, 250mA 75V, 2-Pin SOD-323

Enrgtech Part No: ET16721806
|
Manufacturer Part No:
BAS16WS-E3-18
|
Manufacturer: Vishay

BAS16WS-E3-18 Vishay Switching Diode, 250mA 75V, 2-Pin SOD-323

Product Information

Maximum Diode Capacitance:

2pF

Dimensions:

1.95 x 1.5 x 1.05mm

Mounting Type:

Surface Mount

Power Dissipation:

200mW

Maximum Forward Current:

250mA

Maximum Forward Voltage Drop:

1.25V

Height:

1.05mm

Width:

1.5mm

Length:

1.95mm

Package Type:

SOD-323

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Checking for live stock

This is Switching Diode 250mA 75V 2-Pin SOD-323 manufactured by Vishay. The manufacturer part number is BAS16WS-E3-18. It has a maximum 2pf diode capacitance . The given dimensions of the product include 1.95 x 1.5 x 1.05mm. The product is available in surface mount configuration. It has about 200mw power dissipation . Moreover, the product has a maximum 250ma forward current . It features 1.25v of maximum forward voltage drop. In addition, the height is 1.05mm. Furthermore, the product is 1.5mm wide. Its accurate length is 1.95mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, the product has a maximum 75v reverse voltage . It has a maximum operating temperature of +150 °c. The diode features a single configuration. It contains 2 pins.
