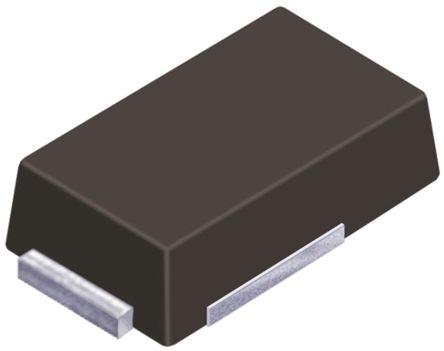

Vishay AR1PM-M3/84A SMT Switching Diode, 1000V 1A, 2-Pin DO-220AA

AR1PM-M3-84A Vishay AR1PM-M3/84A SMT Switching Diode, 1000V 1A, 2-Pin DO-220AA
Vishay

Product Information

Dimensions:
3.61 x 2.18 x 1.15mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Operating Temperature:
+175 °C
Maximum Forward Voltage Drop:
1.6V
Height:
1.15mm
Width:
2.18mm
Length:
3.61mm
Package Type:
DO-220AA
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is SMT Switching Diode 1000V 1A 2-Pin DO-220AA manufactured by Vishay. The manufacturer part number is AR1PM-M3/84A. The given dimensions of the product include 3.61 x 2.18 x 1.15mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. It has a maximum operating temperature of +175 °c. It features 1.6v of maximum forward voltage drop. In addition, the height is 1.15mm. Furthermore, the product is 2.18mm wide. Its accurate length is 3.61mm. The package is a sort of do-220aa. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins.

pdf icon
AR1Px series Surface Mount Fast Avalanche Rectifiers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
