Name: 1N4150W-E3-08, Vishay
Brand: Vishay
SKU: ET16721555
Price: 0.033 GBP
Availability: InStock

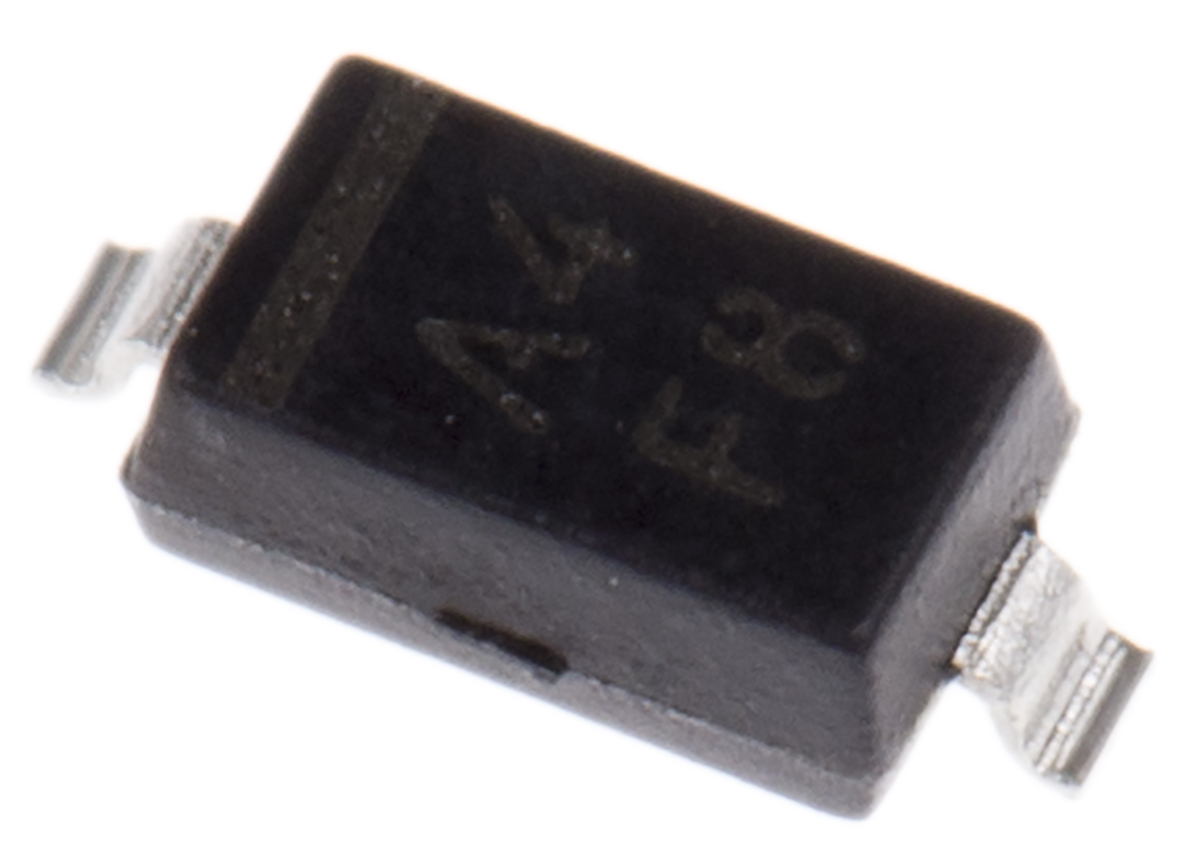

1N4150W-E3-08 Vishay SMT Diode, 50V 200mA, 2-Pin SOD-123

(0)

Product Information

Dimensions:

2.85 x 1.7 x 1.25mm

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Maximum Operating Temperature:

+150 °C

Maximum Forward Voltage Drop:

Height:

1.25mm

Width:

1.7mm

Length:

2.85mm

Package Type:

SOD-123

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Diode Configuration:

Single

Checking for live stock

This is SMT Diode 50V 200mA 2-Pin SOD-123 manufactured by Vishay. The manufacturer part number is 1N4150W-E3-08. The given dimensions of the product include 2.85 x 1.7 x 1.25mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. It has a maximum operating temperature of +150 °c. It features 1v of maximum forward voltage drop. In addition, the height is 1.25mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2.85mm. The package is a sort of sod-123. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins.
