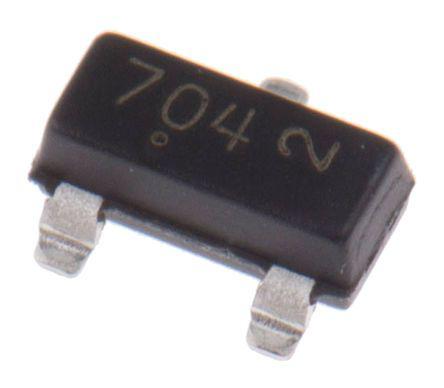

Vishay BAS20-E3-18 Switching Diode, 200mA 150V, 3-Pin SOT-23

BAS20-E3-18 Vishay  Switching Diode, 200mA 150V, 3-Pin SOT-23
BAS20-E3-18
Vishay

Product Information

Maximum Diode Capacitance:
5pF
Maximum Operating Temperature:
150 °C
Dimensions:
3.1 x 1.43 x 1.05mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Forward Current:
200mA
Maximum Series Resistance @ Maximum IF:
5 Ω @ 10 mA
Maximum Forward Voltage Drop:
1.25V
Height:
1.05mm
Width:
1.43mm
Length:
3.1mm
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Voltage:
150V
Power Dissipation:
250mW
Diode Configuration:
Single
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Switching Diode 200mA 150V 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is BAS20-E3-18. It has a maximum 5pf diode capacitance . It has a maximum operating temperature of 150 °c. The given dimensions of the product include 3.1 x 1.43 x 1.05mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 200ma forward current . It has a maximum 5 ω @ 10 ma series resistance @ maximum IF . It features 1.25v of maximum forward voltage drop. In addition, the height is 1.05mm. Furthermore, the product is 1.43mm wide. Its accurate length is 3.1mm. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, the product has a maximum 150v reverse voltage . It has about 250mw power dissipation . The diode features a single configuration. It contains 3 pins.

pdf icon
BAS19, BAS20, BAS21, Small Signal Switching Diodes, High Voltage(Technical Reference)
