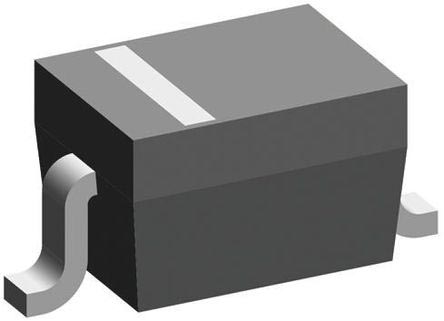

Vishay 1N4151WS-G3-08 Switching Diode, 150mA 50V, 2-Pin SOD-123

Enrgtech Part No: ET13921066
|
Manufacturer Part No:
1N4151WS-G3-08
|
Manufacturer: Vishay

1N4151WS-G3-08 Vishay Switching Diode, 150mA 50V, 2-Pin SOD-123

Product Information

Maximum Diode Capacitance:

2pF

Maximum Operating Temperature:

+150 °C

Dimensions:

2.85 x 1.7 x 1.25mm

Mounting Type:

Surface Mount

Diode Technology:

Silicon Junction

Maximum Forward Current:

150mA

Maximum Forward Voltage Drop:

Height:

1.25mm

Width:

1.7mm

Length:

2.85mm

Package Type:

SOD-323

Number of Elements per Chip:

Checking for live stock

This is Switching Diode 150mA 50V 2-Pin SOD-123 manufactured by Vishay. The manufacturer part number is 1N4151WS-G3-08. It has a maximum 2pf diode capacitance . It has a maximum operating temperature of +150 °c. The given dimensions of the product include 2.85 x 1.7 x 1.25mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 150ma forward current . It features 1v of maximum forward voltage drop. In addition, the height is 1.25mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2.85mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, the product has a maximum 50v reverse voltage . It has about 410w power dissipation . The diode features a single configuration. It contains 2 pins.

Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)

Application Note- Physical Explanation(Technical Reference)

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)

Diodes Group Body Marking(Technical Reference)

Application Note- Trim and Form Process Reccomendation(Technical Reference)

Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)

Application Note- Rectifiers for Power Factor Correction(Technical Reference)

1N4151WS-G, Small Signal Fast Switching Diode(Technical Reference)

Application Note- Fundamentals of Rectifiers(Technical Reference)

Application Note- High Speed Data Line Protection(Technical Reference)
