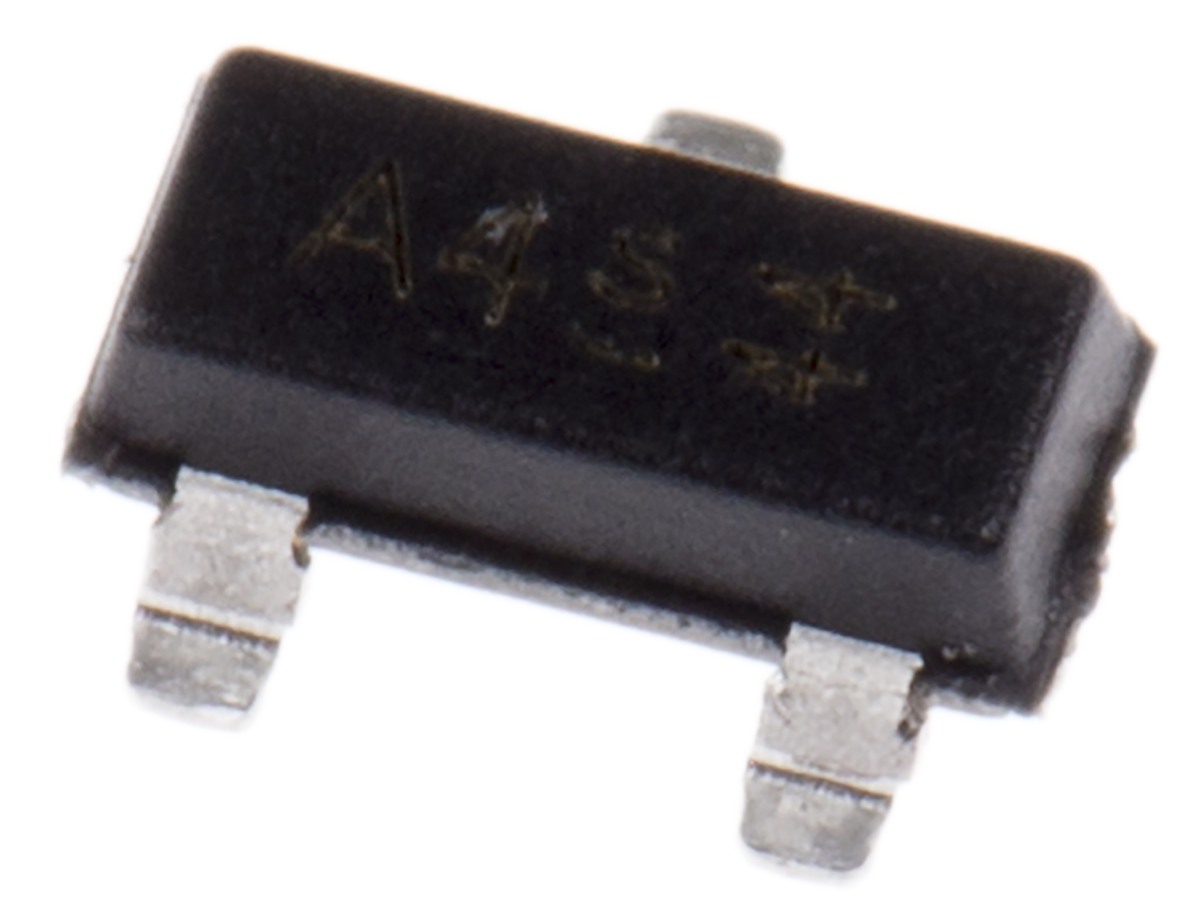

Infineon Dual Switching Diode, Common Cathode, 3-Pin SOT-23 BAV70E6327HTSA1

  • Enrgtech Part No: ET13874637
  • |
  • Manufacturer Part No:

    BAV70

  • |
  • Manufacturer: Infineon
BAV70 Infineon Dual Switching Diode, Common Cathode, 3-Pin SOT-23 E6327HTSA1
BAV70
Infineon

Product Information

Dimensions:
1 x 2.9 x 1.3mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Operating Temperature:
+150 °C
Maximum Forward Voltage Drop:
1.25V
Height:
1mm
Width:
1.3mm
Length:
2.9mm
Package Type:
SOT-23
Number of Elements per Chip:
2
Minimum Operating Temperature:
-65 °C
Diode Configuration:
Common Cathode
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Dual Switching Diode Common Cathode 3-Pin SOT-23 E6327HTSA1 manufactured by Infineon. The manufacturer part number is BAV70. The given dimensions of the product include 1 x 2.9 x 1.3mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. It has a maximum operating temperature of +150 °c. It features 1.25v of maximum forward voltage drop. In addition, the height is 1mm. Furthermore, the product is 1.3mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The diode features a common cathode configuration. It contains 3 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAV70 on website for other similar products.
We accept all major payment methods for all products including ET13874637. Please check your shopping cart at the time of order.
You can order Infineon brand products with BAV70 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon Dual Switching Diode, Common Cathode, 3-Pin SOT-23 BAV70E6327HTSA1. You can also check on our website or by contacting our customer support team for further order details on Infineon Dual Switching Diode, Common Cathode, 3-Pin SOT-23 BAV70E6327HTSA1.
