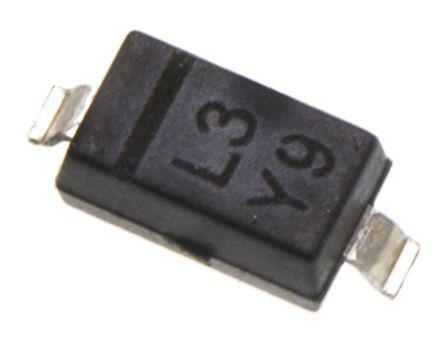

Vishay BAS16D-E3-08 Small Signal Diode, 250mA 75V, 2-Pin SOD-123

BAS16D-E3-08 Vishay Small Signal Diode, 250mA 75V, 2-Pin SOD-123
BAS16D-E3-08
Vishay

Product Information

Maximum Diode Capacitance:
2pF
Dimensions:
2.85 x 1.7 x 1.25mm
Mounting Type:
Surface Mount
Power Dissipation:
350mW
Maximum Forward Current:
250mA
Maximum Forward Voltage Drop:
1.25V
Height:
1.25mm
Width:
1.7mm
Length:
2.85mm
Package Type:
SOD-123
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Voltage:
75V
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Small Signal Diode 250mA 75V 2-Pin SOD-123 manufactured by Vishay. The manufacturer part number is BAS16D-E3-08. It has a maximum 2pf diode capacitance . The given dimensions of the product include 2.85 x 1.7 x 1.25mm. The product is available in surface mount configuration. It has about 350mw power dissipation . Moreover, the product has a maximum 250ma forward current . It features 1.25v of maximum forward voltage drop. In addition, the height is 1.25mm. Furthermore, the product is 1.7mm wide. Its accurate length is 2.85mm. The package is a sort of sod-123. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, the product has a maximum 75v reverse voltage . It has a maximum operating temperature of +150 °c. The diode features a single configuration. It contains 2 pins.

pdf icon
Small Signal Fast Switching Diode Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BAS16D-E3-08 on website for other similar products.
We accept all major payment methods for all products including ET13807007. Please check your shopping cart at the time of order.
You can order Vishay brand products with BAS16D-E3-08 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay BAS16D-E3-08 Small Signal Diode, 250mA 75V, 2-Pin SOD-123. You can also check on our website or by contacting our customer support team for further order details on Vishay BAS16D-E3-08 Small Signal Diode, 250mA 75V, 2-Pin SOD-123.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13807007 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13807007.
Yes. We ship BAS16D-E3-08 Internationally to many countries around the world.
