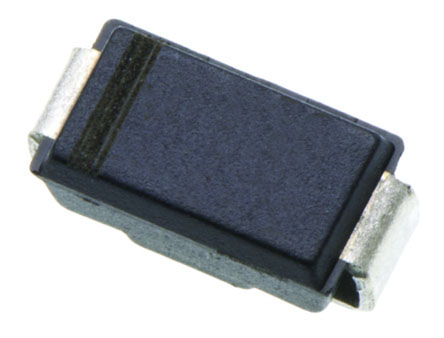

Taiwan Semi RS1M R2 SMT Fast Recovery Diode, 1000V 1A, 2-Pin DO-214AC

RS1M-R2 Taiwan Semi RS1M R2 SMT Fast Recovery Diode, 1000V 1A, 2-Pin DO-214AC
Taiwan Semiconductor

Product Information

Dimensions:
4.6 x 2.83 x 2.3mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Operating Temperature:
+150 °C
Maximum Forward Voltage Drop:
1.3V
Height:
2.3mm
Width:
2.83mm
Length:
4.6mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Configuration:
Single
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Taiwan Semi SMT Fast Recovery Diode 1000V 1A 2-Pin DO-214AC manufactured by Taiwan Semiconductor. The manufacturer part number is RS1M R2. The given dimensions of the product include 4.6 x 2.83 x 2.3mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. It has a maximum operating temperature of +150 °c. It features 1.3v of maximum forward voltage drop. In addition, the height is 2.3mm. Furthermore, the product is 2.83mm wide. Its accurate length is 4.6mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a single configuration. It contains 2 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
RS1A - RS1M, 1A Surface Mount Fast Recovery Rectifiers Datasheet(ver K15)(Technical Reference)
