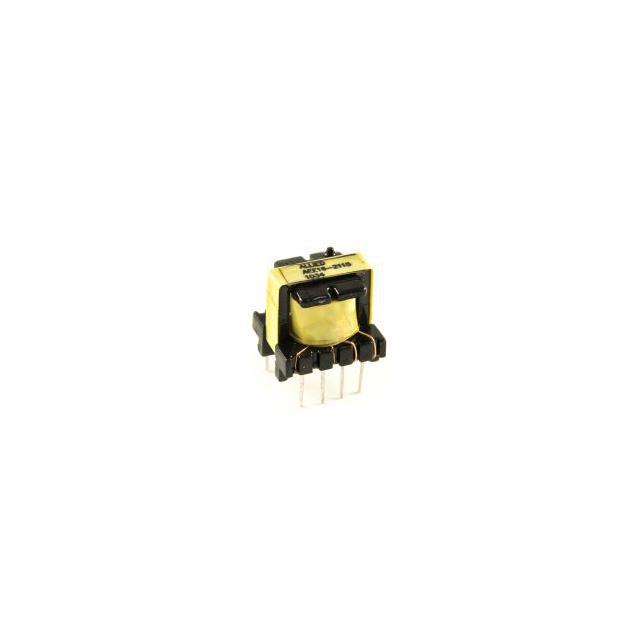

Allied Components International AEE16-2115

AEE16-2115 Allied Components International
Allied Components International

Product Information

Style:
-
HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Inductance @ Frequency:
1mH
Operating Temperature:
-40°C ~ 130°C
Voltage - Primary:
85 ~ 256V
Height - Seated (Max):
0.708" (17.98mm)
Type:
-
REACH Status:
REACH info available upon request
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
0.716" L x 0.630" W (18.19mm x 16.00mm)
Package:
Tray
Voltage - Auxiliary:
15V @ 60mA
Size / Dimension:
0.716" L x 0.630" W (18.19mm x 16.00mm)
Voltage - Isolation:
3000Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Intended Chipset:
-
Series:
-
Frequency:
100kHz
Checking for live stock

This is manufactured by Allied Components International. The manufacturer part number is AEE16-2115. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. Typical inductance of 1mh. The product has -40°c ~ 130°c operating temperature range. Features primary voltage 85 ~ 256v. It has the maximum seated height of 0.708" (17.98mm). In addition, it is reach info available upon request. The product is widely employed in flyback converters. Footprint Options include 0.716" l x 0.630" w (18.19mm x 16.00mm). It is shipped in tray package . Carries 15v @ 60ma of auxiliary voltage. The product's diameters include 0.716" l x 0.630" w (18.19mm x 16.00mm). 3000vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. Supplied with 100khz of frequency.

pdf icon
AEE16(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AEE16-2115 on website for other similar products.
We accept all major payment methods for all products including ET23807312. Please check your shopping cart at the time of order.
You can order Allied Components International brand products with AEE16-2115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Converter, SMPS Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Allied Components International AEE16-2115. You can also check on our website or by contacting our customer support team for further order details on Allied Components International AEE16-2115.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23807312 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Allied Components International" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23807312.
Yes. We ship AEE16-2115 Internationally to many countries around the world.
