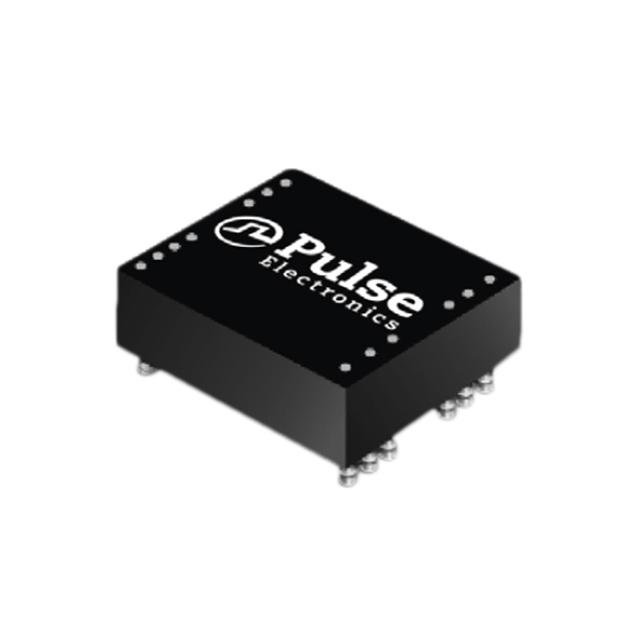

Pulse Electronics PE-68411NL

PE-68411NL Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Inductance @ Frequency:
-
Operating Temperature:
-40°C ~ 130°C
Voltage - Primary:
8 ~ 16V
Height - Seated (Max):
0.480" (12.19mm)
Type:
For DC/DC Converters
REACH Status:
REACH Unaffected
Applications:
Flyback Converters
Chipset Manufacturer:
National Semiconductor
Footprint:
0.920" L x 1.040" W (23.37mm x 26.42mm)
Package:
Tray
Voltage - Auxiliary:
-
Size / Dimension:
0.920" L x 1.040" W (23.37mm x 26.42mm)
Voltage - Isolation:
1500Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
LM2585, LM2586, LM2587, LM2588
Series:
-
Frequency:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is PE-68411NL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has -40°c ~ 130°c operating temperature range. Features primary voltage 8 ~ 16v. It has the maximum seated height of 0.480" (12.19mm). It comes in for dc/dc converters configuration. In addition, it is reach unaffected. The product is widely employed in flyback converters. It is national semiconductor's product with versatile user-desired applications. Footprint Options include 0.920" l x 1.040" w (23.37mm x 26.42mm). It is shipped in tray package . The product's diameters include 0.920" l x 1.040" w (23.37mm x 26.42mm). 1500vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. Intendent Chipset Specs - lm2585, lm2586, lm2587, lm2588. The product is designated with the ear99 code number.

pdf icon
Mult Devs 30/Nov/2021(PCN Obsolescence/ EOL)
pdf icon
Mult Devs Location 14/Jan/2023(PCN Assembly/Origin)
pdf icon
PE-684xxNL Series Datasheet(Datasheets)
