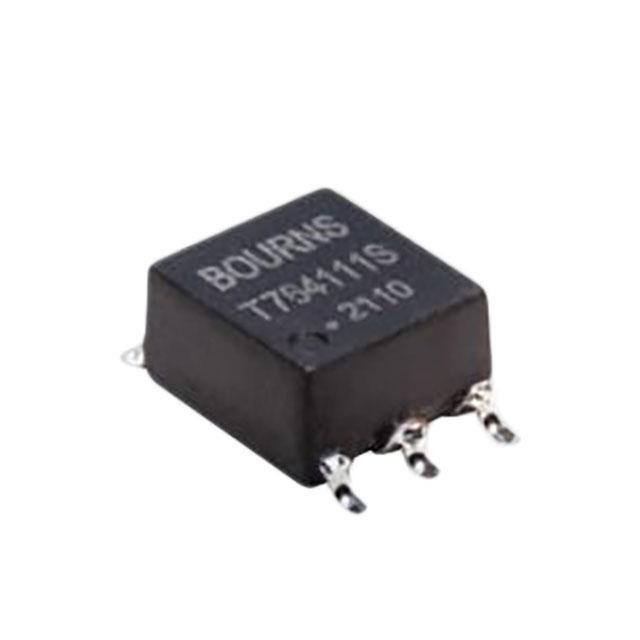

Bourns Inc. PAD002-T764111S

PAD002-T764111S Bourns Inc.
Bourns Inc.

Product Information

Style:
-
HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
475µH @ 100kHz
Operating Temperature:
-40°C ~ 125°C
Voltage - Primary:
-
Height - Seated (Max):
0.157" (3.99mm)
Type:
For DC/DC Converters
REACH Status:
REACH Unaffected
Applications:
Forward, Push-Pull Converters
Chipset Manufacturer:
-
Footprint:
0.388" L x 0.258" W (9.85mm x 6.55mm)
Package:
Tape & Reel (TR)
Voltage - Auxiliary:
-
Size / Dimension:
0.280" L x 0.258" W (7.10mm x 6.55mm)
standardLeadTime:
24 Weeks
Voltage - Isolation:
3100Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
-
Series:
PAD00x-T764
Frequency:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Bourns Inc.. The manufacturer part number is PAD002-T764111S. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. Typical inductance of 475µh @ 100khz. The product has -40°c ~ 125°c operating temperature range. It has the maximum seated height of 0.157" (3.99mm). It comes in for dc/dc converters configuration. In addition, it is reach unaffected. The product is widely employed in forward, push-pull converters. Footprint Options include 0.388" l x 0.258" w (9.85mm x 6.55mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.280" l x 0.258" w (7.10mm x 6.55mm). It has a long 24 weeks standard lead time. 3100vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product pad00x-t764, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
PAD00x-T764 Series Datasheet(Datasheets)
pdf icon
PAD00x-T764 Series Design 21/Feb/2023(PCN Design/Specification)
