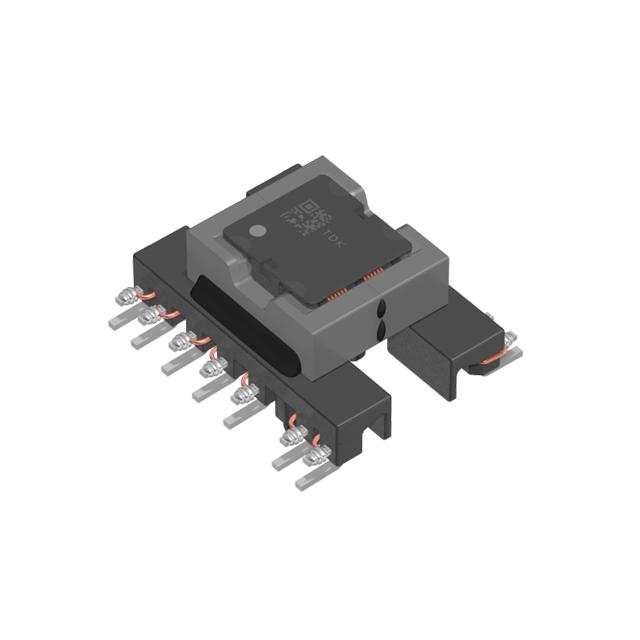

TDK Corporation VGT15SEFD-250S4A7

VGT15SEFD-250S4A7 TDK Corporation
TDK Corporation

Product Information

Style:
Wirewound
HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 130°C
Voltage - Primary:
-
Height - Seated (Max):
0.472" (12.00mm)
title:
VGT15SEFD-250S4A7
Type:
For AC/DC Converters
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
0.906" L x 0.606" W (23.00mm x 15.40mm)
Manufacturer:
TDK Corporation
Inductance @ Frequency:
2.6µH @ 100kHz
Voltage - Auxiliary:
-
Size / Dimension:
0.906" L x 0.606" W (23.00mm x 15.40mm)
standardLeadTime:
20 Weeks
Voltage - Isolation:
2600Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
-
Series:
VGT
Packaging:
Tape & Reel (TR)
Frequency:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is VGT15SEFD-250S4A7. Additionally, the product is designed with wirewound Style. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has -40°c ~ 130°c operating temperature range. It has the maximum seated height of 0.472" (12.00mm). It comes in for ac/dc converters configuration. The product is widely employed in flyback converters. Footprint Options include 0.906" l x 0.606" w (23.00mm x 15.40mm). The tdk corporation's product offers user-desired applications. Typical inductance of 2.6µh @ 100khz. The product's diameters include 0.906" l x 0.606" w (23.00mm x 15.40mm). It has a long 20 weeks standard lead time. 2600vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product vgt, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product is designated with the ear99 code number.
