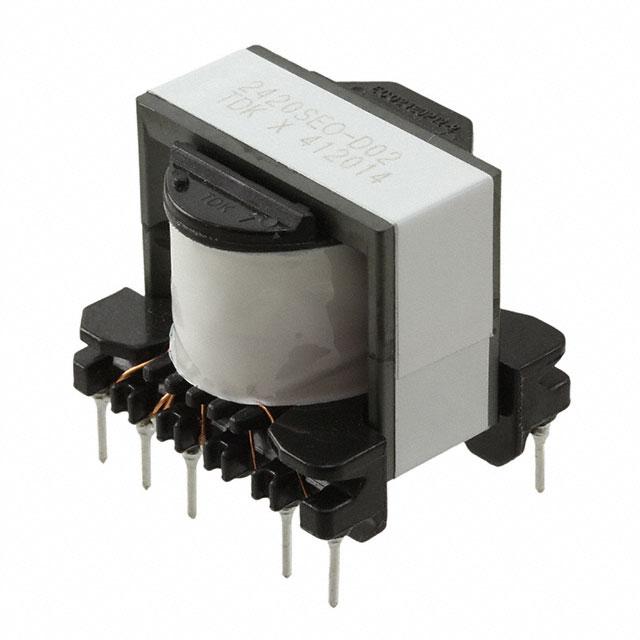

TDK Corporation ECO2420SEO-D02V019

ECO2420SEO-D02V019 TDK Corporation
TDK Corporation

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-30°C ~ 120°C
Type:
For AC/DC Converters
Height - Seated (Max):
1.043" (26.50mm)
Voltage - Primary:
85 ~ 138V
edacadModel:
ECO2420SEO-D02V019 Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
edacadModelUrl:
/en/models/4702640
Manufacturer:
TDK Corporation
Inductance @ Frequency:
278µH @ 10kHz
Voltage - Auxiliary:
12.3V @ 3.3A
Size / Dimension:
1.122" L x 0.945" W (28.50mm x 24.00mm)
Footprint:
1.122" L x 0.945" W (28.50mm x 24.00mm)
standardLeadTime:
15 Weeks
Voltage - Isolation:
3000Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Intended Chipset:
-
Series:
ECO
Packaging:
Bulk
Frequency:
33kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is ECO2420SEO-D02V019. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. The product has -30°c ~ 120°c operating temperature range. It comes in for ac/dc converters configuration. It has the maximum seated height of 1.043" (26.50mm). Features primary voltage 85 ~ 138v. The product is widely employed in flyback converters. The tdk corporation's product offers user-desired applications. Typical inductance of 278µh @ 10khz. Carries 12.3v @ 3.3a of auxiliary voltage. The product's diameters include 1.122" l x 0.945" w (28.50mm x 24.00mm). Footprint Options include 1.122" l x 0.945" w (28.50mm x 24.00mm). It has a long 15 weeks standard lead time. 3000vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product eco, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Supplied with 33khz of frequency. The product is designated with the ear99 code number.
