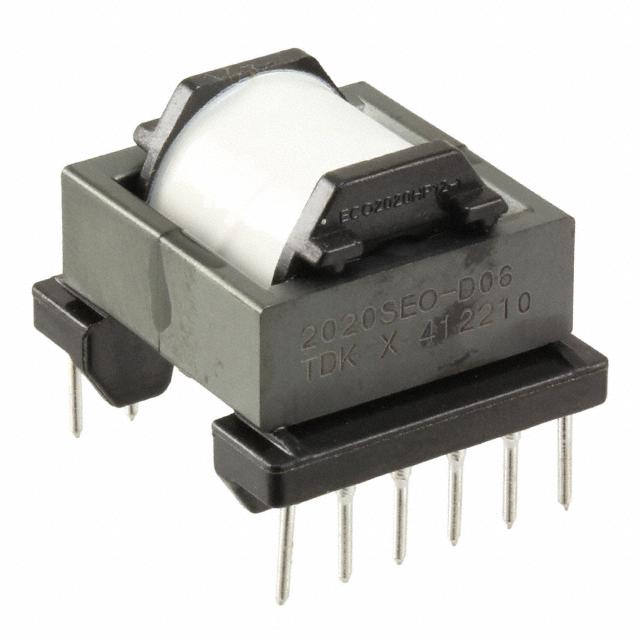

TDK Corporation ECO2020SEO-D06H015

ECO2020SEO-D06H015 TDK Corporation
TDK Corporation

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
1.3mH @ 10kHz
Operating Temperature:
-30°C ~ 120°C
Voltage - Primary:
80 ~ 276V
Height - Seated (Max):
0.787" (20.00mm)
Type:
For AC/DC Converters
edacadModel:
ECO2020SEO-D06H015 Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
0.925" L x 1.063" W (23.50mm x 27.00mm)
Package:
Bulk
Voltage - Auxiliary:
19.7V @ 267mA
Size / Dimension:
0.925" L x 1.063" W (23.50mm x 27.00mm)
edacadModelUrl:
/en/models/4702629
standardLeadTime:
15 Weeks
Voltage - Isolation:
1500Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Intended Chipset:
-
Series:
ECO
Frequency:
80kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is ECO2020SEO-D06H015. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. Typical inductance of 1.3mh @ 10khz. The product has -30°c ~ 120°c operating temperature range. Features primary voltage 80 ~ 276v. It has the maximum seated height of 0.787" (20.00mm). It comes in for ac/dc converters configuration. The product is widely employed in flyback converters. Footprint Options include 0.925" l x 1.063" w (23.50mm x 27.00mm). It is shipped in bulk package . Carries 19.7v @ 267ma of auxiliary voltage. The product's diameters include 0.925" l x 1.063" w (23.50mm x 27.00mm). It has a long 15 weeks standard lead time. 1500vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product eco, is a highly preferred choice for users. Supplied with 80khz of frequency. The product is designated with the ear99 code number.
