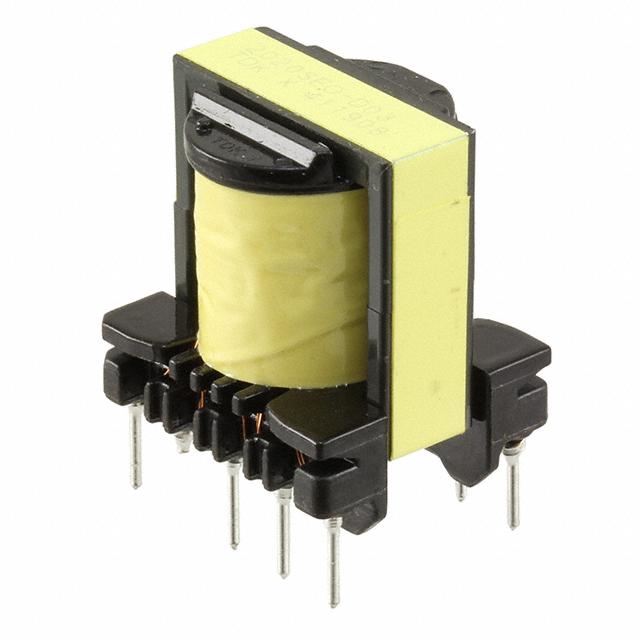

TDK Corporation ECO2020SEO-D03V016

ECO2020SEO-D03V016 TDK Corporation
TDK Corporation

Product Information

HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
764µH @ 100kHz
Operating Temperature:
-30°C ~ 120°C
Voltage - Primary:
85 ~ 276V
Height - Seated (Max):
1.063" (27.00mm)
Type:
For AC/DC Converters
edacadModel:
ECO2020SEO-D03V016 Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
0.886" L x 0.768" W (22.50mm x 19.50mm)
Package:
Bulk
Voltage - Auxiliary:
12V @ 850mA, 17V @ 150mA
Size / Dimension:
0.886" L x 0.768" W (22.50mm x 19.50mm)
edacadModelUrl:
/en/models/4702627
standardLeadTime:
15 Weeks
Voltage - Isolation:
3600Vrms
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Intended Chipset:
-
Series:
ECO
Frequency:
124kHz
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is ECO2020SEO-D03V016. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. Typical inductance of 764µh @ 100khz. The product has -30°c ~ 120°c operating temperature range. Features primary voltage 85 ~ 276v. It has the maximum seated height of 1.063" (27.00mm). It comes in for ac/dc converters configuration. The product is widely employed in flyback converters. Footprint Options include 0.886" l x 0.768" w (22.50mm x 19.50mm). It is shipped in bulk package . Carries 12v @ 850ma, 17v @ 150ma of auxiliary voltage. The product's diameters include 0.886" l x 0.768" w (22.50mm x 19.50mm). It has a long 15 weeks standard lead time. 3600vrms of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product eco, is a highly preferred choice for users. Supplied with 124khz of frequency. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Material 30/Oct/2020(PCN Design/Specification)
pdf icon
ECO Series(Datasheets)
