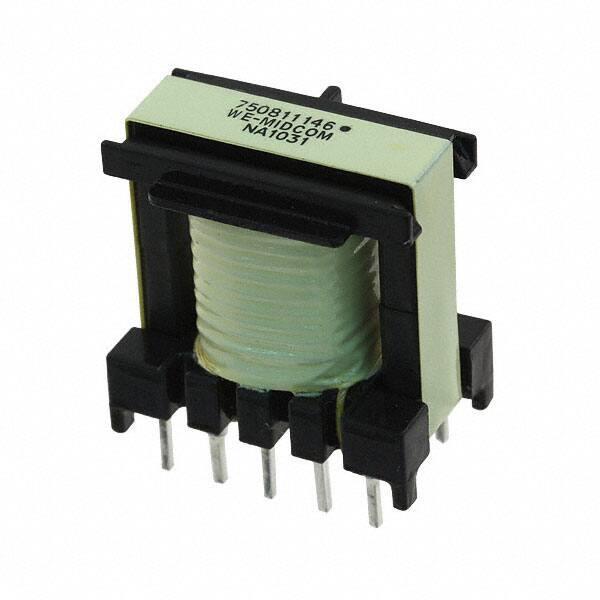

Wurth Electronics Midcom 750811146

750811146 Wurth Electronics Midcom
Wurth Electronics Midcom

Product Information

Manufacturer Standard Lead Time:
16 Weeks
Size / Dimension:
0.876" L x 0.567" W (22.88mm x 14.40mm)
Detailed Description:
Flyback Converters For For AC/DC Converters SMPS Transformer 3750Vrms Isolation 130kHz Through Hole
Voltage - Isolation:
3750Vrms
Height - Seated (Max):
0.878" (22.30mm)
Mounting Type:
Through Hole
Intended Chipset:
PMP6001, TPS92210
Series:
WE-UNIT, MID-OLTI
Inductance @ Frequency:
430µH @ 65kHz
Packaging:
Tray
Applications:
Flyback Converters
Operating Temperature:
-40°C ~ 125°C
Frequency:
130kHz
Chipset Manufacturer:
Texas Instruments
Voltage - Primary:
88 ~ 269V
Footprint:
0.876" L x 0.567" W (22.25mm x 14.40mm)
Type:
For AC/DC Converters
Manufacturer:
Wurth Electronics Midcom
Checking for live stock

This is manufactured by Wurth Electronics Midcom. The manufacturer part number is 750811146. It has typical 16 weeks of manufacturer standard lead time. The product's diameters include 0.876" l x 0.567" w (22.88mm x 14.40mm). It features flyback converters for for ac/dc converters smps transformer 3750vrms isolation 130khz through hole. 3750vrms of isolation voltage. It has the maximum seated height of 0.878" (22.30mm). The product is available in through hole configuration. Intendent Chipset Specs - pmp6001, tps92210. The product we-unit, mid-olti, is a highly preferred choice for users. Typical inductance of 430µh @ 65khz. In addition, tray is the available packaging type of the product. The product is widely employed in flyback converters. The product has -40°c ~ 125°c operating temperature range. Supplied with 130khz of frequency. It is texas instruments's product with versatile user-desired applications. Features primary voltage 88 ~ 269v. Footprint Options include 0.876" l x 0.567" w (22.25mm x 14.40mm). It comes in for ac/dc converters configuration. The wurth electronics midcom's product offers user-desired applications.
