SMD transformer DC/DC 1mH 1:1:1

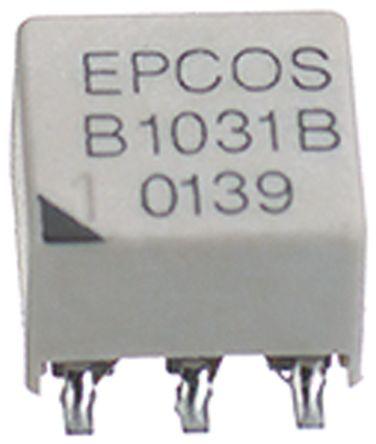

B78304B1031A003 SMD transformer DC/DC 1mH 1:1:1
EPCOS

Product Information

Number of Outputs:
1
Maximum Temperature:
+85°C
Dimensions:
8 x 7 x 5.4mm
Weight:
0.6g
Application:
Broadband Transformers, Drive Transformers for Power Semiconductors, Low-power DC/DC Converters, Pulse Transformers
Leakage Inductance:
1µH
Minimum Temperature:
-40°C
Length:
8mm
Maximum Operating Frequency:
4MHz
Width:
7mm
Depth:
5.4mm
Inductance:
1µH
Mounting Type:
Surface Mount
Termination Type:
Gullwing
Core Type:
Ferrite
Direct Current Resistance DCR:
<0.9Ω
RoHs Compliant
Checking for live stock

This is SMD transformer DC/DC 1mH 1:1:1 manufactured by EPCOS. The manufacturer part number is B78304B1031A003. Additionally, the product is supplied with 1 outputs. The product has +85°c maximum temperature. The given dimensions of the product include 8 x 7 x 5.4mm. The typical product's weight is 0.6g. Applications Information involves broadband transformers, drive transformers for power semiconductors, low-power dc/dc converters, pulse transformers. It has about 1µh leakage inductance . While its minimum temperature is -40°c. Its accurate length is 8mm. It carries 4mhz of maximum operating frequency. Furthermore, the product is 7mm wide. The product comes in 5.4mm depth. The product has a 1µh inductance value. The product is available in surface mount configuration. The product is designed with a gullwing termination. Robust product with a ferrite core. With a <0.9ω of direct current resistance DCR .

pdf icon
Transformers DC/DC Converters B78304B(Technical Reference)
