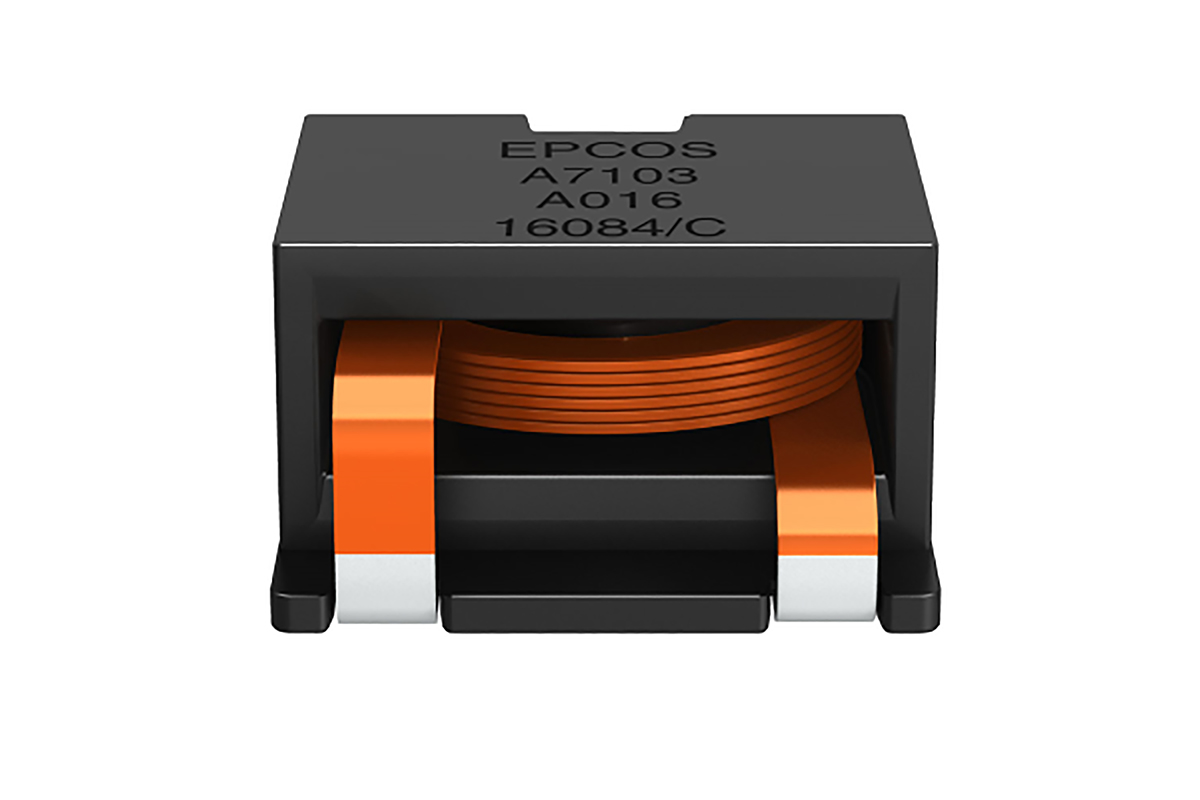

EPCOS, B82559_A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±10% Shielded 15.5A Idc

B82559B6682A016 EPCOS, B82559_A016, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±10% Shielded 15.5A Idc
EPCOS

Product Information

Maximum DC Resistance:
6.8mΩ
Inductor Construction:
Shielded
Dimensions:
17.3 x 18.7 x 8.35mm
Shielded:
Yes
Series:
B82559_A016
Minimum Operating Temperature:
-40°C
Length:
17.3mm
Height:
8.35mm
Maximum DC Current:
15.5A
Depth:
18.7mm
Core Material:
Ferrite
Inductance:
6.8 μH
Maximum Self Resonant Frequency:
> 2MHz
Maximum Operating Temperature:
+150°C
Tolerance:
±10%
Automotive Standard:
AEC-Q200
Package/Case:
SMD
RoHs Compliant
Checking for live stock

This is B82559_A016 SMD Shielded Wire-wound SMD Inductor with a Ferrite Core 6.8 μH ±10% Shielded 15.5A Idc manufactured by EPCOS. The manufacturer part number is B82559B6682A016. It allows up to 6.8mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 17.3 x 18.7 x 8.35mm. Shielding Options yes. The product b82559_a016, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 17.3mm. In addition, the height is 8.35mm. While it carries 15.5a of maximum DC current. The product comes in 18.7mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 6.8 μh inductance value. It provides > 2mhz of maximum self-resonant frequency. It has a maximum operating temperature of +150°c. It features ±10% of tolerance value. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is smd.

pdf icon
Datasheet B82559A6682A016(Technical Reference)
