Inductor 0603 22nH 5 0.7A SMD

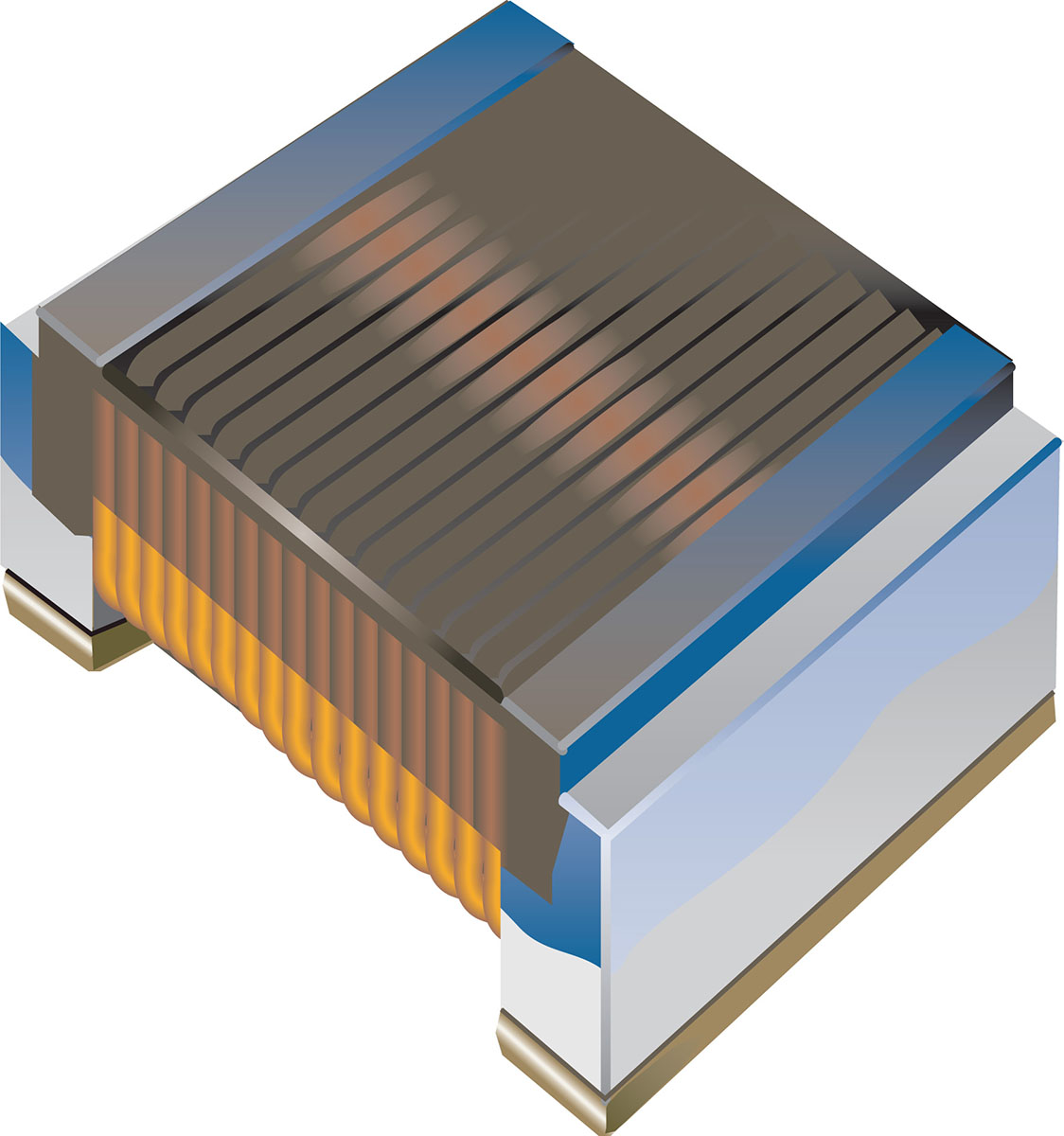

CW161009A-22NJ Inductor 0603 22nH 5 0.7A SMD
Bourns

Product Information

Maximum DC Resistance:
150mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1.65 x 1.15 x 0.9mm
Shielded:
No
Series:
CW161009A
Minimum Operating Temperature:
-40°C
Minimum Quality Factor:
35
Length:
1.65mm
Height:
0.9mm
Maximum DC Current:
700mA
Depth:
1.15mm
Core Material:
Ceramic
Inductance:
22 nH
Maximum Self Resonant Frequency:
3GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Automotive Standard:
AEC-Q200
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is Inductor 0603 22nH 5 0.7A SMD manufactured by Bourns. The manufacturer part number is CW161009A-22NJ. It allows up to 150mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.65 x 1.15 x 0.9mm. Shielding Options no. The product cw161009a, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has minimum 35 quality factors. Its accurate length is 1.65mm. In addition, the height is 0.9mm. While it carries 700ma of maximum DC current. The product comes in 1.15mm depth. The core is manufactured from highly durable and reliable ceramic materials. The product has a 22 nh inductance value. It provides 3ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 0603 (1608m).

pdf icon
Datasheet CW161009A-22NJ(Technical Reference)
