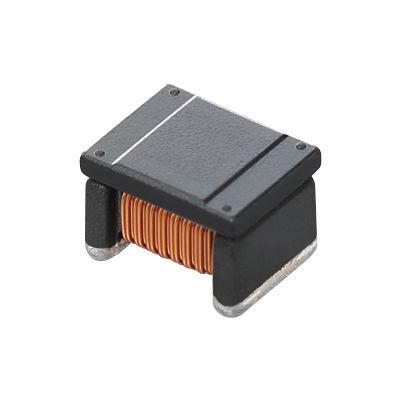

Murata LQW32FT_0H Series Type 1210 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% 550mA Idc

LQW32FT220M0HL Murata LQW32FT_0H Series Type 1210 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% 550mA Idc
Murata

Product Information

Maximum DC Resistance:
620mΩ
Inductor Construction:
Wire-Wound
Dimensions:
3.2 x 2.5 x 2.3mm
Shielded:
Yes
Series:
LQW32FT_0H
Minimum Operating Temperature:
-40°C
Length:
3.2mm
Height:
2.3mm
Maximum DC Current:
550mA
Depth:
2.5mm
Core Material:
Ferrite
Inductance:
22 μH
Maximum Self Resonant Frequency:
50MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Automotive Standard:
AEC-Q200
Package/Case:
1210 (3225M)
RoHs Compliant
Checking for live stock

This is LQW32FT_0H Series Type 1210 Shielded Wire-wound SMD Inductor with a Ferrite Core 22 μH ±20% 550mA Idc manufactured by Murata. The manufacturer part number is LQW32FT220M0HL. It allows up to 620mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 3.2 x 2.5 x 2.3mm. Shielding Options yes. The product lqw32ft_0h, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 3.2mm. In addition, the height is 2.3mm. While it carries 550ma of maximum DC current. The product comes in 2.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 22 μh inductance value. It provides 50mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. The product complies with automotive standard - aec-q200. Concerning its package and casing, it is 1210 (3225m).

pdf icon
Datasheet LQW32FT220M0HL(Technical Reference)
