Wire Wound Metal core 3.0x3.0mm 22uH

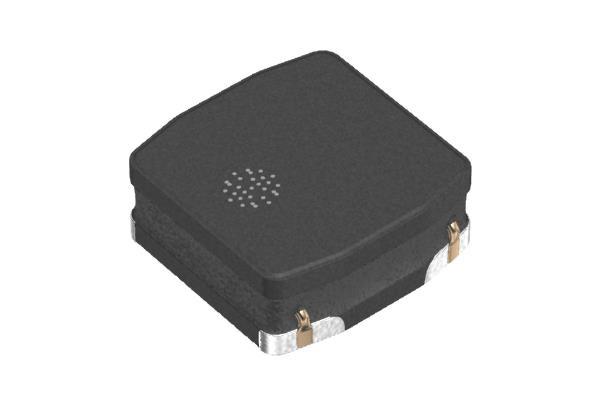

VLS3012HBX-220M Wire Wound Metal core 3.0x3.0mm 22uH
TDK

Product Information

Maximum DC Resistance:
761mΩ
Inductor Construction:
Wire-Wound
Dimensions:
3 x 3 x 1.2mm
Shielded:
Yes
Series:
VLS-HBX
Length:
3mm
Height:
1.2mm
Maximum DC Current:
1.01A
Depth:
3mm
Core Material:
Metal
Inductance:
22 μH
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
3012
RoHs Compliant
Checking for live stock

This is Wire Wound Metal core 3.0x3.0mm 22uH manufactured by TDK. The manufacturer part number is VLS3012HBX-220M. It allows up to 761mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 3 x 3 x 1.2mm. Shielding Options yes. The product vls-hbx, is a highly preferred choice for users. Its accurate length is 3mm. In addition, the height is 1.2mm. While it carries 1.01a of maximum DC current. The product comes in 3mm depth. The core is manufactured from highly durable and reliable metal materials. The product has a 22 μh inductance value. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 3012.

pdf icon
Datasheet VLS3012HBX-220M(Technical Reference)
