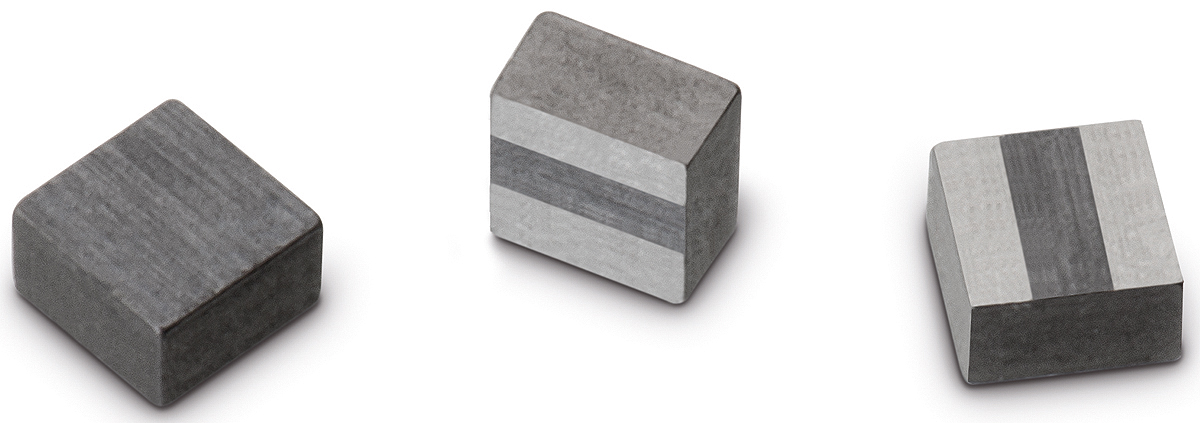

Wurth WE-MAPI Series Type 1610 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 820 nH ±30% Wire-Wound

Enrgtech Part No: ET16770808
|
Manufacturer Part No:
744383130082
|
Manufacturer: Wurth Elektronik

744383130082 Wurth WE-MAPI Series Type 1610 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 820 nH ±30% Wire-Wound

Product Information

Maximum DC Resistance:

144mΩ

Inductor Construction:

Wire-Wound

Dimensions:

1.6 x 1.6 x 1mm

Shielded:

Yes

Series:

WE-MAPI

Length:

1.6mm

Height:

1mm

Maximum DC Current:

1.45A

Depth:

1.6mm

Core Material:

Magnetic Iron Alloy

Inductance:

0.82 μH

Maximum Self Resonant Frequency:

115MHz

Checking for live stock

This is Wurth WE-MAPI Series Type 1610 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core 820 nH ±30% Wire-Wound manufactured by Wurth Elektronik. The manufacturer part number is 744383130082. It allows up to 144mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 1.6 x 1mm. Shielding Options yes. The product we-mapi, is a highly preferred choice for users. Its accurate length is 1.6mm. In addition, the height is 1mm. While it carries 1.45a of maximum DC current. The product comes in 1.6mm depth. The core is manufactured from highly durable and reliable magnetic iron alloy materials. The product has a 0.82 μh inductance value. It provides 115mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±30% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1610.

WE eiSos Embedded Flyer(Technical Reference)

Voids in Bottom Termination Components (BTC) - ANP036 Application Note(Technical Reference)

Ideal Power Inductors for Energy Efficient Applications - ANP031 Application Note(Technical Reference)

Datasheet(Technical Reference)

Accurate Inductor Loss Determination - Application Note(Technical Reference)

Application Note - The Sham of the High Rated Current(Technical Reference)
