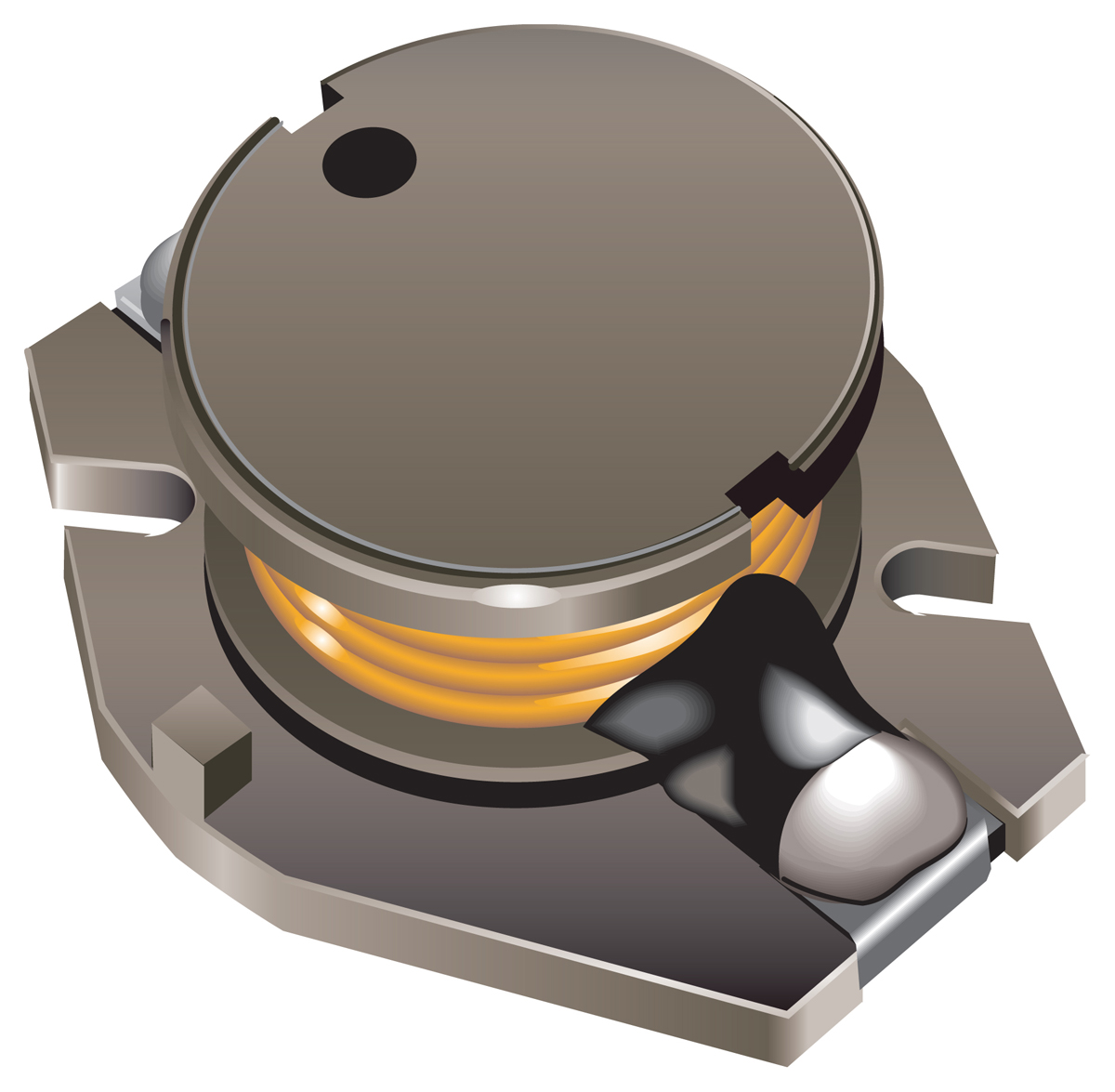

Bourns SDR1005 Series Type 1005 Wire-wound SMD Inductor with a Ferrite Core, 22 μH Wire-Wound 2A Idc Q:29

SDR1005-220ML Bourns SDR1005 Series Type 1005 Wire-wound SMD Inductor with a Ferrite Core, 22 μH Wire-Wound 2A Idc Q:29
Bourns

Product Information

Maximum DC Resistance:
100mΩ
Inductor Construction:
Wire-Wound
Dimensions:
12.7 x 10 x 5mm
Shielded:
No
Series:
SDR1005
Minimum Operating Temperature:
-40°C
Minimum Quality Factor:
29
Length:
12.7mm
Height:
5mm
Maximum DC Current:
2A
Depth:
10mm
Core Material:
Ferrite DR
Inductance:
22 μH
Maximum Self Resonant Frequency:
18MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Moulded:
Yes
Package/Case:
1005
RoHs Compliant
Checking for live stock

This is SDR1005 Series Type 1005 Wire-wound SMD Inductor with a Ferrite Core 22 μH Wire-Wound 2A Idc Q:29 manufactured by Bourns. The manufacturer part number is SDR1005-220ML. It allows up to 100mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12.7 x 10 x 5mm. Shielding Options no. The product sdr1005, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has minimum 29 quality factors. Its accurate length is 12.7mm. In addition, the height is 5mm. While it carries 2a of maximum DC current. The product comes in 10mm depth. The core is manufactured from highly durable and reliable ferrite dr materials. The product has a 22 μh inductance value. It provides 18mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 1005.

pdf icon
Bourns SDR1005 Series SMD Power Inductors Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SDR1005-220ML on website for other similar products.
We accept all major payment methods for all products including ET16754286. Please check your shopping cart at the time of order.
You can order Bourns brand products with SDR1005-220ML directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Bourns SDR1005 Series Type 1005 Wire-wound SMD Inductor with a Ferrite Core, 22 μH Wire-Wound 2A Idc Q:29. You can also check on our website or by contacting our customer support team for further order details on Bourns SDR1005 Series Type 1005 Wire-wound SMD Inductor with a Ferrite Core, 22 μH Wire-Wound 2A Idc Q:29.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16754286 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16754286.
Yes. We ship SDR1005-220ML Internationally to many countries around the world.
