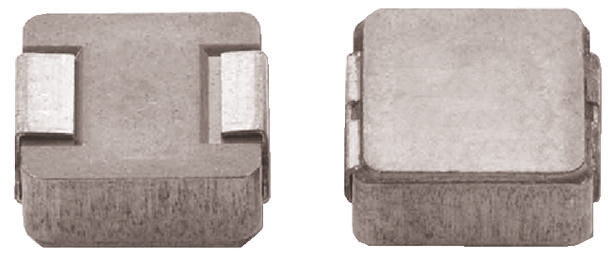

Vishay IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20% Wire-Wound

Enrgtech Part No: ET16722478
|
Manufacturer Part No:
IHLP2525CZER150M01
|
Manufacturer: Vishay

IHLP2525CZER150M01 Vishay IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20% Wire-Wound

Product Information

Maximum DC Resistance:

820mΩ

Inductor Construction:

Shielded

Dimensions:

6.86 x 6.47 x 3mm

Shielded:

Yes

Series:

IHLP

Length:

6.86mm

Height:

3mm

Maximum DC Current:

Depth:

6.47mm

Core Material:

Metal Composite

Inductance:

15 μH

Maximum Self Resonant Frequency:

5MHz

Checking for live stock

This is IHLP Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core 15 μH ±20% Wire-Wound manufactured by Vishay. The manufacturer part number is IHLP2525CZER150M01. It allows up to 820mω maximum DC resistance. The inductor is designed as shielded inductor. The given dimensions of the product include 6.86 x 6.47 x 3mm. Shielding Options yes. The product ihlp, is a highly preferred choice for users. Its accurate length is 6.86mm. In addition, the height is 3mm. While it carries 3a of maximum DC current. The product comes in 6.47mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 15 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 2225 (5664m).

Application Note(Technical Reference)

Power Inductors Capabilities(Technical Reference)

Power Inductors 101(Technical Reference)

Did You Know?(Technical Reference)

IHLP-2525CZ-01 Low Profile, High Current IHLP Inductors Data Sheet(Technical Reference)

IHLP Selection Example(Technical Reference)

Power Inductors Infograph(Technical Reference)
