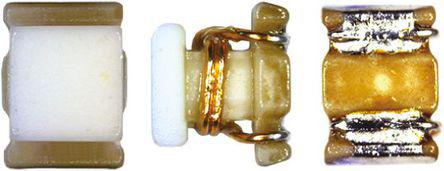

Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 120 nH ±5% Wire-Wound 320mA Idc Q:40

LQW2BHNR12J03L Murata LQW2BH Series Type 0805 Wire-wound SMD Inductor 120 nH ±5% Wire-Wound 320mA Idc Q:40
Murata

Product Information

Maximum DC Resistance:
400mΩ
Inductor Construction:
Wire-Wound
Dimensions:
2 x 1.5 x 1.7mm
Shielded:
No
Series:
LQW2BH
Minimum Quality Factor:
40
Length:
2mm
Height:
1.7mm
Maximum DC Current:
320mA
Depth:
1.5mm
Inductance:
120 nH
Maximum Self Resonant Frequency:
750MHz
Maximum Operating Temperature:
+85°C
Tolerance:
±5%
Minimum Operating Temperature:
-40°C
Package/Case:
0805 (2012M)
RoHs Compliant
Checking for live stock

This is LQW2BH Series Type 0805 Wire-wound SMD Inductor 120 nH ±5% Wire-Wound 320mA Idc Q:40 manufactured by Murata. The manufacturer part number is LQW2BHNR12J03L. It allows up to 400mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2 x 1.5 x 1.7mm. Shielding Options no. The product lqw2bh, is a highly preferred choice for users. It has minimum 40 quality factors. Its accurate length is 2mm. In addition, the height is 1.7mm. While it carries 320ma of maximum DC current. The product comes in 1.5mm depth. The product has a 120 nh inductance value. It provides 750mhz of maximum self-resonant frequency. It has a maximum operating temperature of +85°c. It features ±5% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0805 (2012m).

pdf icon
Chip Inductor (Chip Coil) for High Frequency Vertical Wire Wound LQW2BH_03 Series (0805 Size) Data Sheet(Technical Reference)
