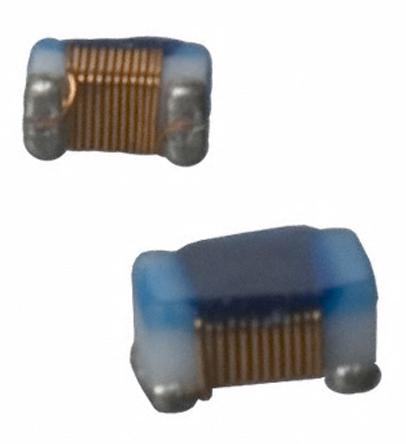

Murata LQW18CN_00 Series Type 1608 Wire-wound SMD Inductor with a Ferrite Core, 15 nH ±5% Wire-Wound 2.2A Idc

LQW18CN15NJ00D Murata LQW18CN_00 Series Type 1608 Wire-wound SMD Inductor with a Ferrite Core, 15 nH ±5% Wire-Wound 2.2A Idc
Murata

Product Information

Maximum DC Resistance:
25mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1.6 x 0.8 x 0.8mm
Shielded:
No
Series:
LQW18CN_00
Minimum Operating Temperature:
-40°C
Length:
1.6mm
Height:
0.8mm
Maximum DC Current:
2.2A
Depth:
0.8mm
Core Material:
Ferrite
Inductance:
15 nH
Maximum Self Resonant Frequency:
2GHz
Maximum Operating Temperature:
+85°C
Tolerance:
±5%
Moulded:
Yes
Package/Case:
0603 (1608M)
RoHs Compliant
Checking for live stock

This is LQW18CN_00 Series Type 1608 Wire-wound SMD Inductor with a Ferrite Core 15 nH ±5% Wire-Wound 2.2A Idc manufactured by Murata. The manufacturer part number is LQW18CN15NJ00D. It allows up to 25mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1.6 x 0.8 x 0.8mm. Shielding Options no. The product lqw18cn_00, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 1.6mm. In addition, the height is 0.8mm. While it carries 2.2a of maximum DC current. The product comes in 0.8mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 15 nh inductance value. It provides 2ghz of maximum self-resonant frequency. It has a maximum operating temperature of +85°c. It features ±5% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 0603 (1608m).

pdf icon
Murata LQW18CN15NJ00D Inductor Datasheet(Technical Reference)
