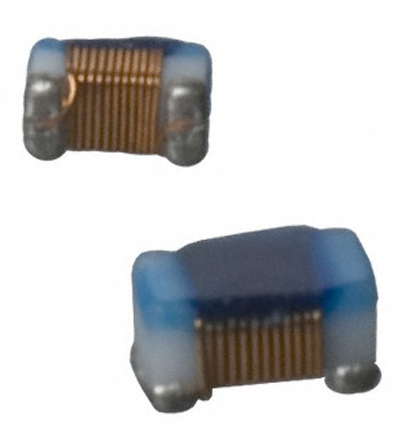

Murata LQW15AN_80 Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 3.3 nH ±0.2nH Wire-Wound

LQW15AN3N3C80D Murata LQW15AN_80 Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 3.3 nH ±0.2nH Wire-Wound
Murata

Product Information

Maximum DC Resistance:
30mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
No
Series:
LQW15AN_80
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
30
Length:
1mm
Height:
0.5mm
Maximum DC Current:
2A
Depth:
0.6mm
Core Material:
Non-Magnetic Core
Inductance:
3.3 nH
Maximum Self Resonant Frequency:
14GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±0.2nH
Moulded:
Yes
Package/Case:
1005
RoHs Compliant
Checking for live stock

This is LQW15AN_80 Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Core Core 3.3 nH ±0.2nH Wire-Wound manufactured by Murata. The manufacturer part number is LQW15AN3N3C80D. It allows up to 30mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options no. The product lqw15an_80, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 30 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 2a of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable non-magnetic core materials. The product has a 3.3 nh inductance value. It provides 14ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±0.2nh of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 1005.

pdf icon
Murata LQW15AN3N3C80D Inductor Datasheet(Technical Reference)
