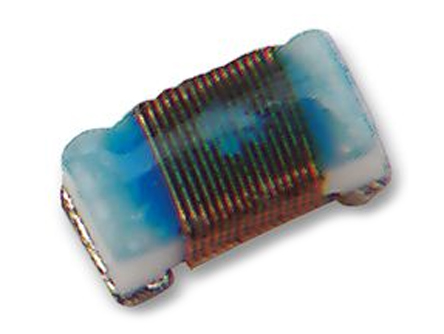

Murata LQW15AN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±3% Wire-Wound

LQW15AN12NH00D Murata LQW15AN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±3% Wire-Wound
Murata

Product Information

Maximum DC Resistance:
140mΩ
Inductor Construction:
Wire-Wound
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
No
Series:
LQW15A_00
Minimum Quality Factor:
30
Length:
1mm
Height:
0.5mm
Maximum DC Current:
500mA
Depth:
0.6mm
Core Material:
Non-Magnetic Ceramic
Inductance:
12 nH
Maximum Self Resonant Frequency:
5.5GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±3%
Minimum Operating Temperature:
-55°C
Package/Case:
0402
RoHs Compliant
Checking for live stock

This is LQW15AN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core 12 nH ±3% Wire-Wound manufactured by Murata. The manufacturer part number is LQW15AN12NH00D. It allows up to 140mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options no. The product lqw15a_00, is a highly preferred choice for users. It has minimum 30 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 500ma of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable non-magnetic ceramic materials. The product has a 12 nh inductance value. It provides 5.5ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±3% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 0402.

pdf icon
Murata LQW15AN12NH00D Fixed Inductor Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LQW15AN12NH00D on website for other similar products.
We accept all major payment methods for all products including ET16714795. Please check your shopping cart at the time of order.
You can order Murata brand products with LQW15AN12NH00D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata LQW15AN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±3% Wire-Wound. You can also check on our website or by contacting our customer support team for further order details on Murata LQW15AN Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±3% Wire-Wound.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16714795 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Murata" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16714795.
Yes. We ship LQW15AN12NH00D Internationally to many countries around the world.
