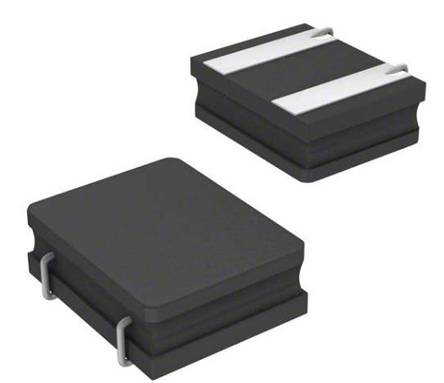

Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH Wire-Wound 710mA Idc

LQH2HPN150MJRL Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH Wire-Wound 710mA Idc
Murata

Product Information

Maximum DC Resistance:
660mΩ
Inductor Construction:
Wire-Wound
Dimensions:
2.5 x 2 x 1.1mm
Shielded:
Yes
Series:
LQH
Minimum Operating Temperature:
-40°C
Length:
2.5mm
Height:
1.1mm
Maximum DC Current:
710mA
Depth:
2mm
Core Material:
Ferrite
Inductance:
15 μH
Maximum Self Resonant Frequency:
Minimum of 20MHz
Maximum Operating Temperature:
(Ambient) +105 °C, (Product) +125°C
Tolerance:
±20%
Moulded:
Yes
Package/Case:
2520
RoHs Compliant
Checking for live stock

This is LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core 15 μH Wire-Wound 710mA Idc manufactured by Murata. The manufacturer part number is LQH2HPN150MJRL. It allows up to 660mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 2.5 x 2 x 1.1mm. Shielding Options yes. The product lqh, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 2.5mm. In addition, the height is 1.1mm. While it carries 710ma of maximum DC current. The product comes in 2mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 15 μh inductance value. It provides minimum of 20mhz of maximum self-resonant frequency. It has a maximum operating temperature of (ambient) +105 °c, (product) +125°c. It features ±20% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 2520.

pdf icon
Datasheet(Technical Reference)
pdf icon
Chip Inductors Catalougue(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LQH2HPN150MJRL on website for other similar products.
We accept all major payment methods for all products including ET16714622. Please check your shopping cart at the time of order.
You can order Murata brand products with LQH2HPN150MJRL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH Wire-Wound 710mA Idc. You can also check on our website or by contacting our customer support team for further order details on Murata LQH Series Type 2520 Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH Wire-Wound 710mA Idc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16714622 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Murata" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16714622.
Yes. We ship LQH2HPN150MJRL Internationally to many countries around the world.
