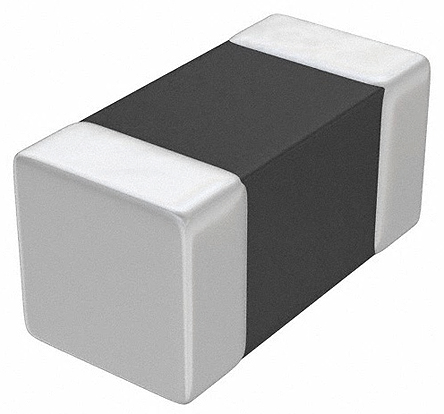

Murata LQG15HS Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±5% Multilayer

LQG15HS12NJ02D Murata LQG15HS Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±5% Multilayer
Murata

Product Information

Maximum DC Resistance:
280mΩ
Inductor Construction:
Multilayer
Dimensions:
1 x 0.5 x 0.5mm
Maximum DC Current:
300mA
Series:
LQG15HS
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
8
Length:
1mm
Height:
0.5mm
Depth:
0.5mm
Core Material:
Non-Magnetic Ceramic
Inductance:
12 nH
Maximum Self Resonant Frequency:
3GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±5%
Moulded:
Yes
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is LQG15HS Series Type 1005 Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core 12 nH ±5% Multilayer manufactured by Murata. The manufacturer part number is LQG15HS12NJ02D. It allows up to 280mω maximum DC resistance. The inductor is designed as multilayer inductor. The given dimensions of the product include 1 x 0.5 x 0.5mm. While it carries 300ma of maximum DC current. The product lqg15hs, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 8 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. The product comes in 0.5mm depth. The core is manufactured from highly durable and reliable non-magnetic ceramic materials. The product has a 12 nh inductance value. It provides 3ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±5% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 0402 (1005m).

pdf icon
Murata LQG15HS12NJ02D Fixed Inductor Datasheet(Technical Reference)
