Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 100 mH ±30% Sectional Winding

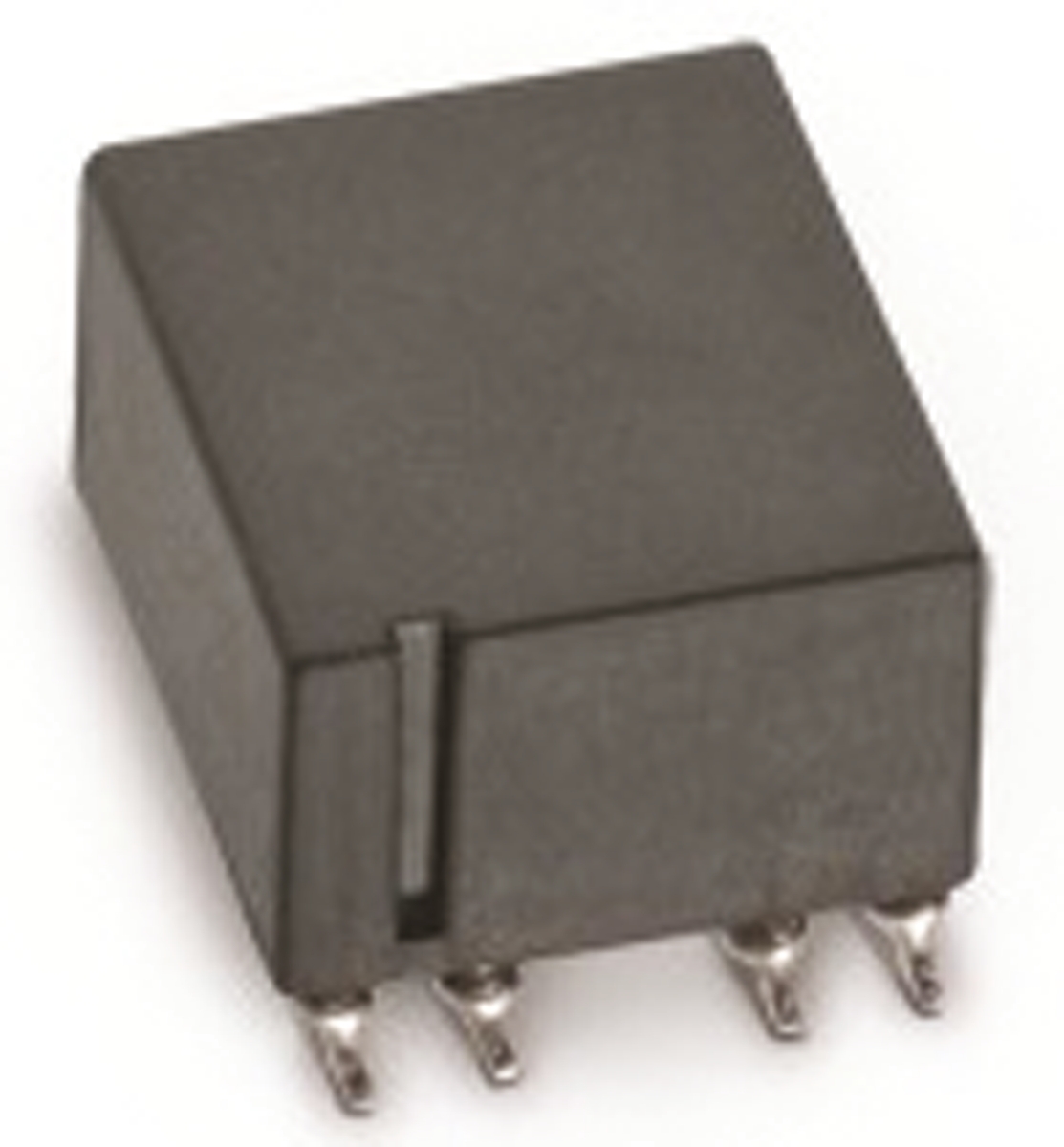

744290104 Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 100 mH ±30% Sectional Winding
Wurth Elektronik

Product Information

Maximum DC Resistance:
8.5Ω
Inductor Construction:
Sectional Winding
Dimensions:
14 x 12.5 x 7.8mm
Shielded:
Yes
Series:
WE-UCF
Length:
14mm
Height:
7.8mm
Maximum DC Current:
150mA
Depth:
12.5mm
Core Material:
Ferrite
Inductance:
2 x 100 mH
Maximum Operating Temperature:
+125°C
Tolerance:
±30%
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core 2 x 100 mH ±30% Sectional Winding manufactured by Wurth Elektronik. The manufacturer part number is 744290104. It allows up to 8.5ω maximum DC resistance. The inductor is designed as sectional winding inductor. The given dimensions of the product include 14 x 12.5 x 7.8mm. Shielding Options yes. The product we-ucf, is a highly preferred choice for users. Its accurate length is 14mm. In addition, the height is 7.8mm. While it carries 150ma of maximum DC current. The product comes in 12.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 2 x 100 mh inductance value. It has a maximum operating temperature of +125°c. It features ±30% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
WE-UCF SMD Common Mode Line Filter - 744290104 Datasheet(Technical Reference)
pdf icon
WE eiSos Embedded Flyer(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search 744290104 on website for other similar products.
We accept all major payment methods for all products including ET14117152. Please check your shopping cart at the time of order.
You can order Wurth Elektronik brand products with 744290104 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Surface Mount Inductors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 100 mH ±30% Sectional Winding. You can also check on our website or by contacting our customer support team for further order details on Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 100 mH ±30% Sectional Winding.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14117152 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Wurth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14117152.
Yes. We ship 744290104 Internationally to many countries around the world.
