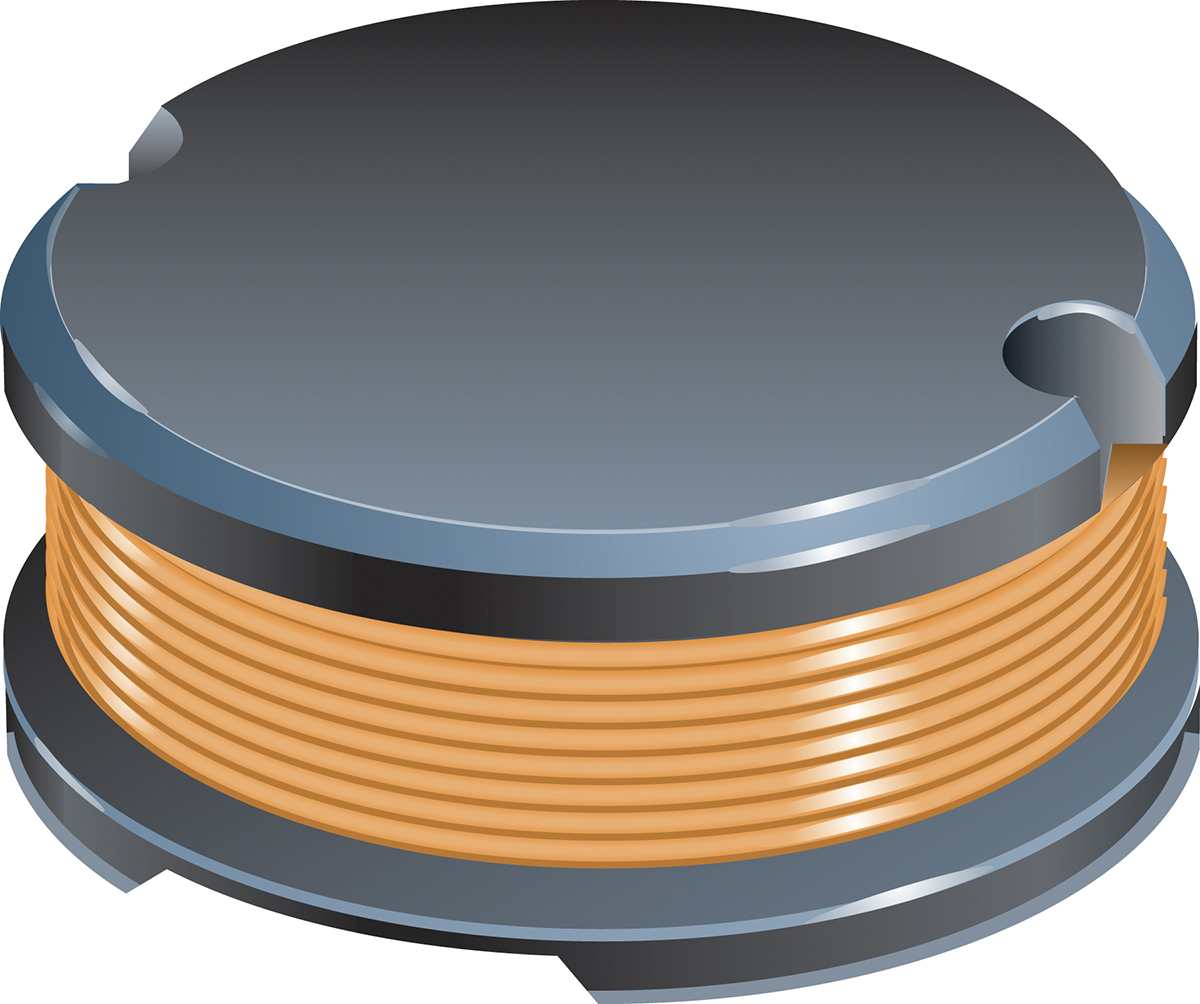

Bourns SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 2.3A Idc Q:20

SDR0805-220ML Bourns SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 2.3A Idc Q:20
Bourns

Product Information

Diameter:
7.8mm
Inductor Construction:
Ferrite Core
Dimensions:
7.8 x 7.8 x 5.3mm
Maximum DC Resistance:
110mΩ
Shielded:
No
Series:
SDR0805
Minimum Quality Factor:
20
Length:
7.8mm
Height:
5.3mm
Maximum DC Current:
1.5A
Depth:
7.8mm
Core Material:
Ferrite DR
Inductance:
22 μH
Maximum Self Resonant Frequency:
13MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
0805
RoHs Compliant
Checking for live stock

This is SDR0805 Series Wire-wound SMD Inductor with a Ferrite Core 22 μH ±20% Wire-Wound 2.3A Idc Q:20 manufactured by Bourns. The manufacturer part number is SDR0805-220ML. Its diameter is 7.8mm. The inductor is designed as ferrite core inductor. The given dimensions of the product include 7.8 x 7.8 x 5.3mm. It allows up to 110mω maximum DC resistance. Shielding Options no. The product sdr0805, is a highly preferred choice for users. It has minimum 20 quality factors. Its accurate length is 7.8mm. In addition, the height is 5.3mm. While it carries 1.5a of maximum DC current. The product comes in 7.8mm depth. The core is manufactured from highly durable and reliable ferrite dr materials. The product has a 22 μh inductance value. It provides 13mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0805.

pdf icon
SDR0805 Series - SMD Power Inductors Data Sheet(Technical Reference)
pdf icon
Datasheet SDR0805-220ML(Technical Reference)
